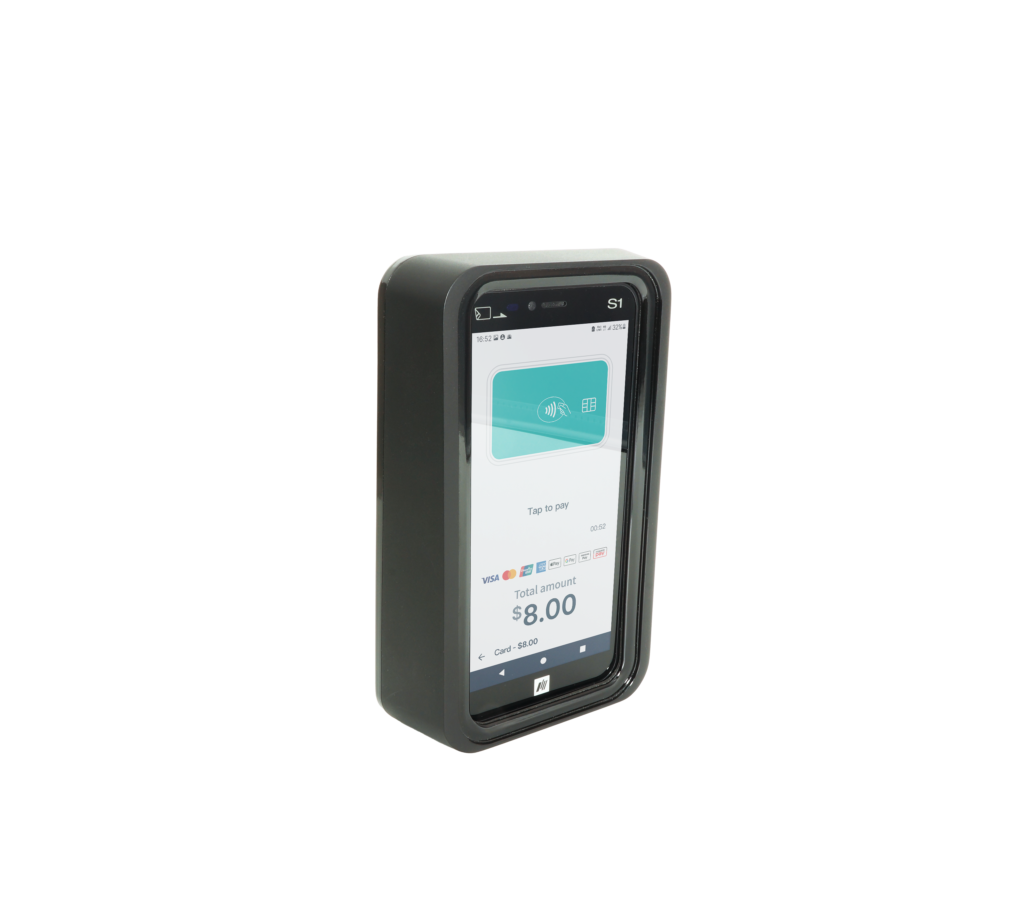

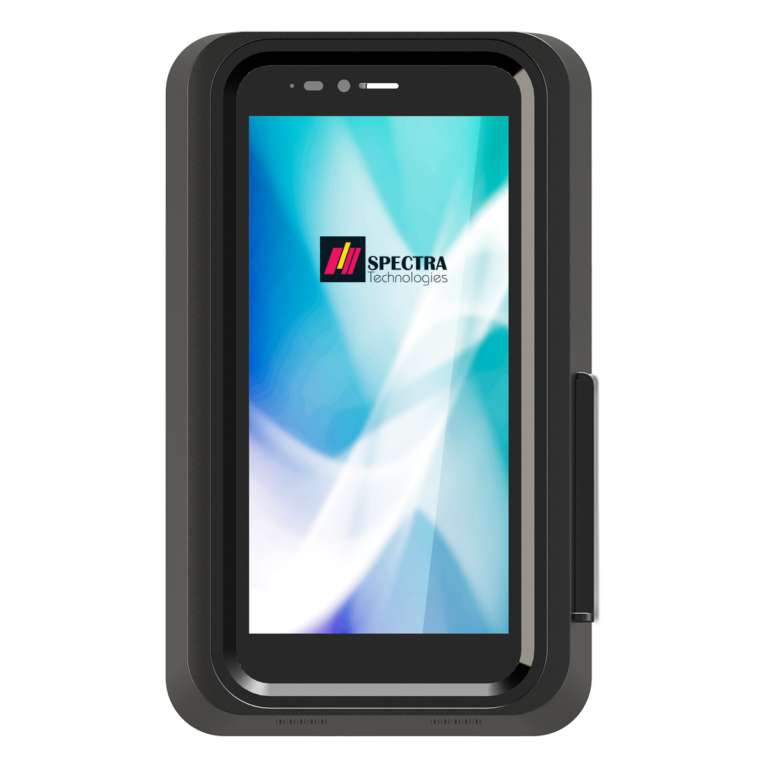

S1 Self-Service Payment Terminal
All in one Self-Service
Payment Terminal

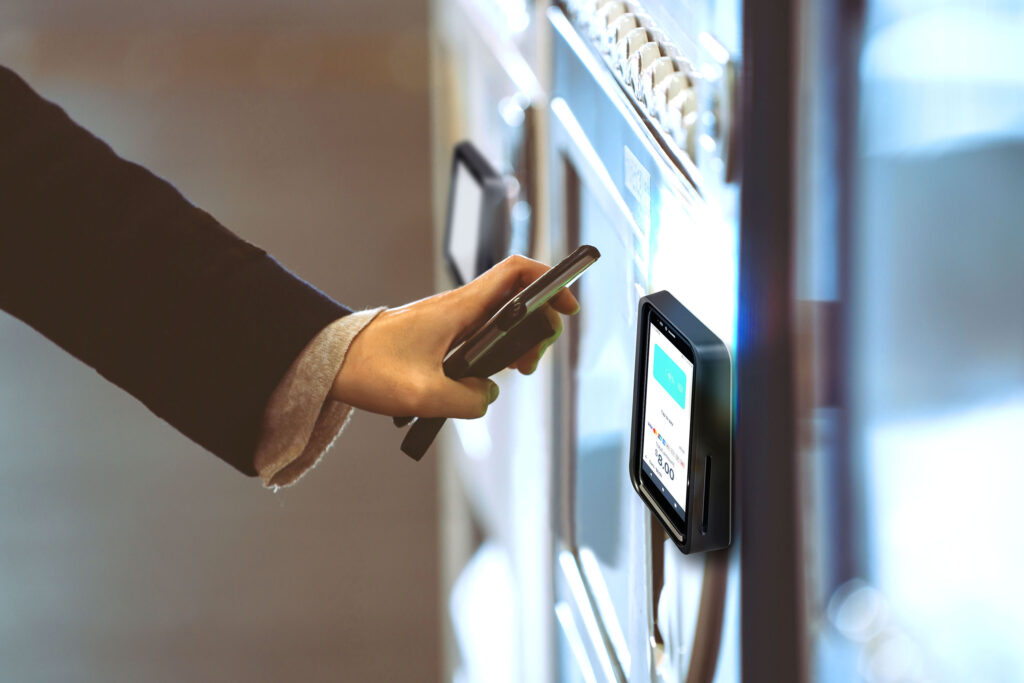

Complied with EVA standard with a durable and long-lasting case, SPECTRA’s S1 self-service payment terminal offers a robust set of payment features and is operationally reliable in totally unattended environments
tap-on-screen
Chip & PIN
NFC Contactless
5.5” 720×1440 IPS capacitive multi-touch
Core Features
Quad-core A53@ 2.0GHz
5.5” 720×1440 IPS capacitive multi-touch
0.3M pixels FF Front Camera (optional: 2M pixels FF)
4G-LTE/3G/2G, dual band WiFi 802.11 b/g/n/ac,
Bluetooth® 5.0, 100Mbps Ethernet
Support EMV Chip & PIN
NFC contactless, Tap-on-Screen
Android OS 12
2GB RAM + 16GB Flash
RS232, MDB device, USB Host on rear panel
Dual SIM, Single SAM
European Vendor Association (EVA) standards
IP65
Android OS 12
PCI 6.x
Sturdy
Certification
PCI 6.x
Specifications
| Table Header | Table Header |
|---|---|
|
Processor |
Quad-core A53@ 2.0GHz + Secure processor |
|
Operating system |
Android 12 |
|
Memory |
2GB RAM + 16GB Flash |
|
Display |
5.5” 720×1440 IPS capacitive multi-touch |
|
Camera |
0.3M FF front camera |
|
NFC |
ISO14443 A/B and FeliCa, front-top LCD side |
|
ICC |
Smart Card complies with ISO7816 |
|
Ports |
MDB slave, RS232 in RJ11 |
|
USB port |
USB Host type-A x 1 |
|
Sensor |
Proximity sensor near front camera |
|
SIM |
Mini SIM x 2 |
|
SAM |
SAM x 1 |
|
Power |
12-48V via MDB port, 9-18V via DC Jack |
|
Connectivity |
4G-LTE/3G/2G, dual band WiFi 802.11 b/g/n/ac, Bluetooth® 5.0, 100Mbps Ethernet |
|
Frequency bands |
GSM: BAND 850/900/1800/1900, WCDMA: BAND1/2/4/5/8, TDD: BAND 38/40/41(120M), FDD: B1/2/3/4/5/7/8/20/28 |
|
Frequency bands (Thailand) |
GSM: BAND 850/900/1800/1900, WCDMA: BAND1/2/4/5/8, TDD: BAND 38/40, FDD: B1/2/3/4/5/7/8/20/28 |
|
Operation temperature |
0˚C – 70˚C |
|
Storage temperature |
-25˚C – 70˚C |
|
Dimension & weight |
170(L) x 105(W) x 41(D)mm, 527g |
|
Installation cutout |
106(L) x 82(W)mm |
*Specifications are subject to change without prior notice.
