S1 iReader
comes with Ethernet, COM, USB for various ECR connections
This PCI 6.x-certified S1 iReader comes with a simple start-up procedure and could be turned on automatically once it is well assembled and powered up
Available for standalone usage or with stand pole, this USB-powered S1 iReader does not require any extra battery. It is the perfect solution for chain stores, restaurants and bars, boutiques and so on
Available for standalone usage or with stand pole, this USB-powered S1 iReader does not require any extra battery. It is the perfect solution for chain stores, restaurants and bars, boutiques and so on
Core Features
S1 iReader with stand pole
Payment mounting solutions for signature capture, Chip & PIN and mobile devices
Flexible for tilt and swivel movements
Built-in Wi-Fi, Bluetooth®, LTE seamless ECR linkage
Secure, simple, easy to use

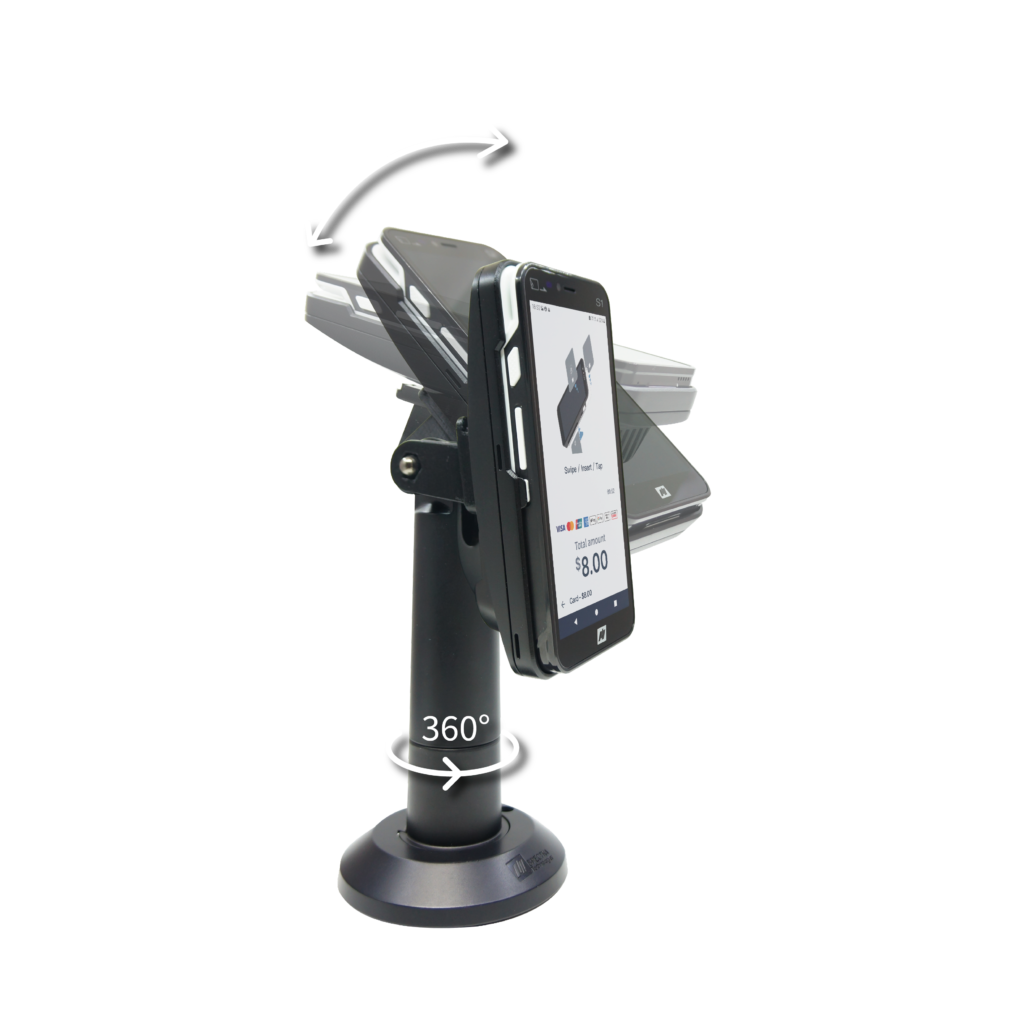

Adjustable Stand
User friendly design with up to 180˚ tilts adjustable stand is suitable for different scenarios of merchants.
Specifications
| Table Header | Table Header |
|---|---|
|
Processor |
Quad-core A53@ 2.0GHz + Secure processor |
|
Operating system |
Android 12 |
|
Memory |
1GB RAM+8GB Flash; 2GB RAM+16GB Flash (optional) |
|
Display |
5.5” 720x1440 IPS capacitive multi-touch |
|
Camera |
0.3M FF front camera |
|
NFC |
ISO14443 A/B and FeliCa, front-top LCD side |
|
ICC |
Smart Card complies with ISO7816 |
|
MSR |
Support Track 1/2/3 ISO7810/7811 |
|
USB |
USB device COM port type-C |
|
Sensor |
Proximity sensor near front camera |
|
SIM |
Nano SIM x 1, mini SIM x 1 |
|
SAM |
SAM slot x 1 |
|
Power |
5V Via USB type-C, or Power-over-Ethernet 802.11af |
|
Connectivity |
4G-LTE/3G/2G, dual band WiFi 802.11 b/g/n/ac, Bluetooth® 5.0, 100Mbps Ethernet |
|

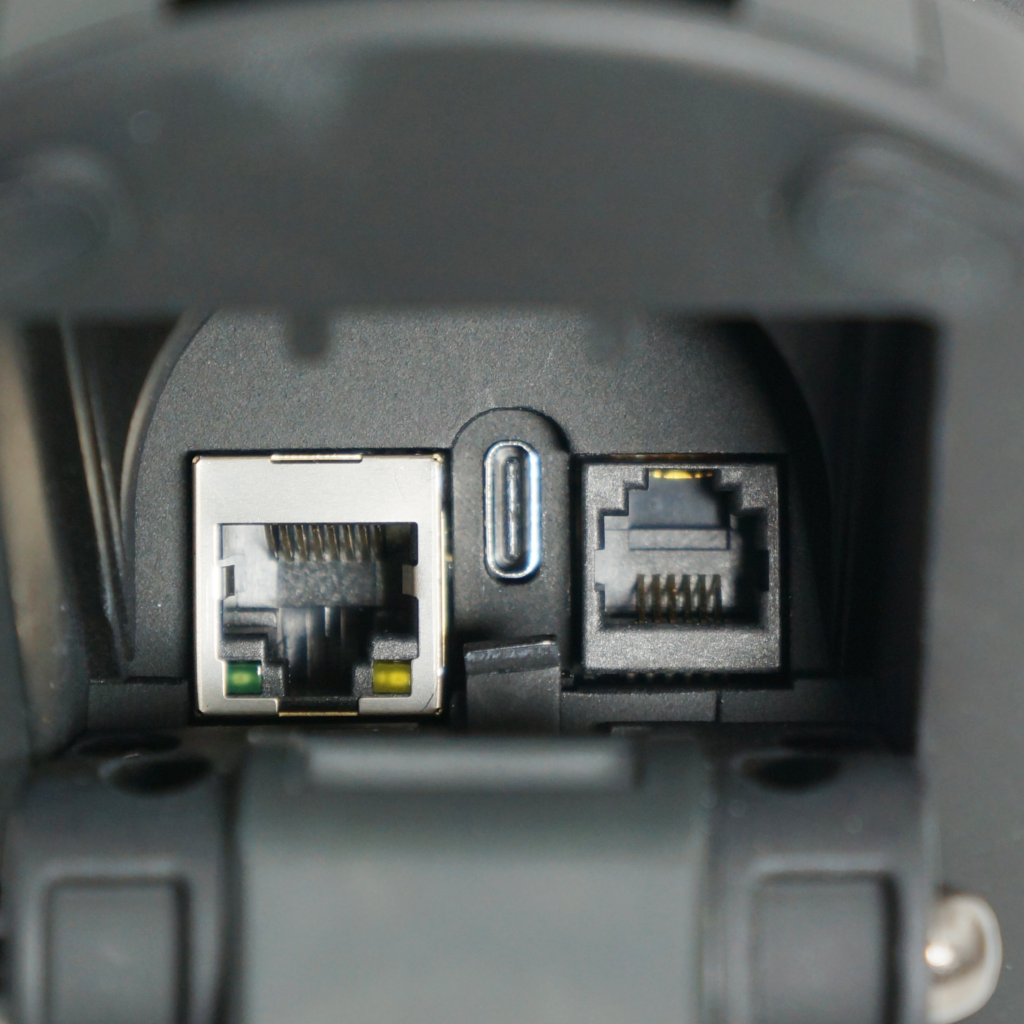

Ports |
RS232 @115200bps (RJ11 port) x 1, USB 2.0 device com port at USB type-C x 1, Ethernet 10/100BaseT (RJ45 port) x 1 |
|
ESD |
+/-21kV Air discharge, +/-10kV contact discharge |
|
LED |
Green, rear side for status indication |
|
Enclosure material |
Plastic |
|
Operation temperature |
0˚C - 50˚C |
|
Storage temperature |
-20˚C - 70˚C |
|
Dimension & weight |
139(H) X 123(L) X 78(W)mm, 360g (S1 included) |
*Specifications are subject to change without prior notice.
