S1

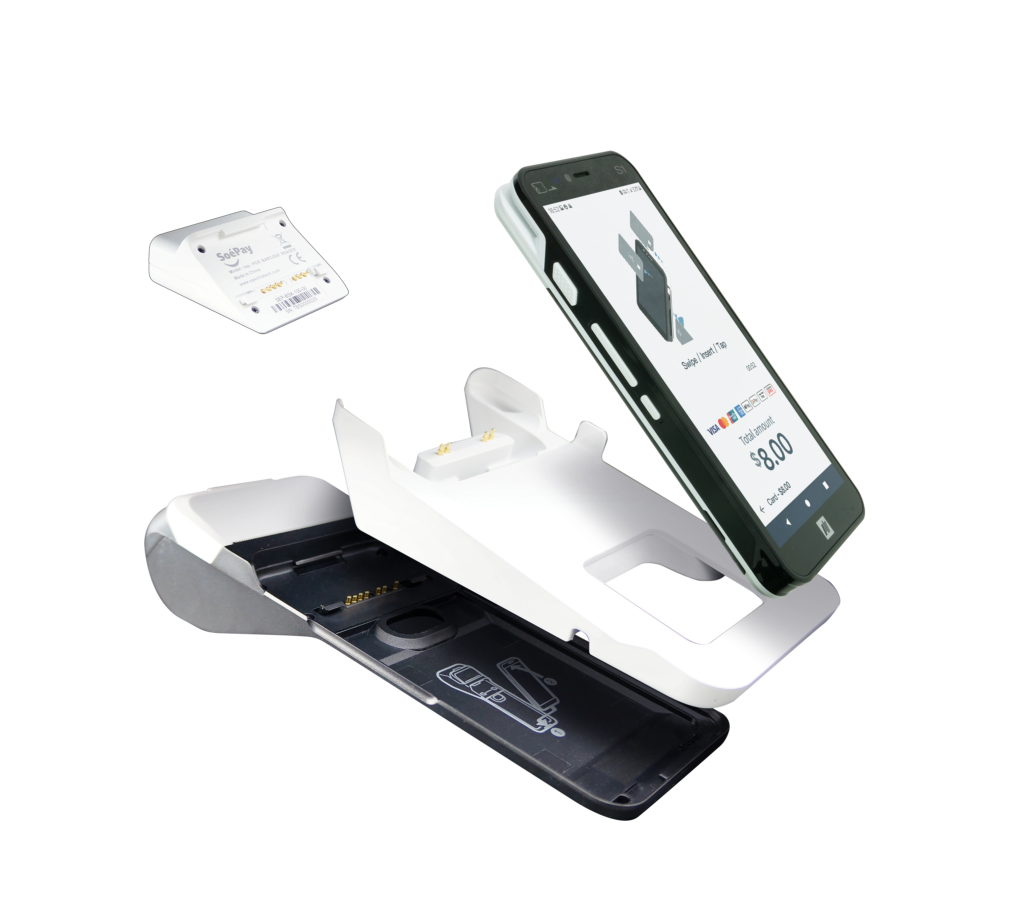

SPECTRA’s latest product – Android-based Smart POS S1 comes with a slim and sleek design

Accepting all EMV-based contact, contactless and QR code payment methods, S1 is perfect for various scenarios to harness maximum flexibility

With the unique tap-on-screen feature on the 5.5” display allowing payment screen tilting, both the merchant and customers could have a better checkout experience. This device also comes with the easy-loading thermal printer kit and a set of peripherals available

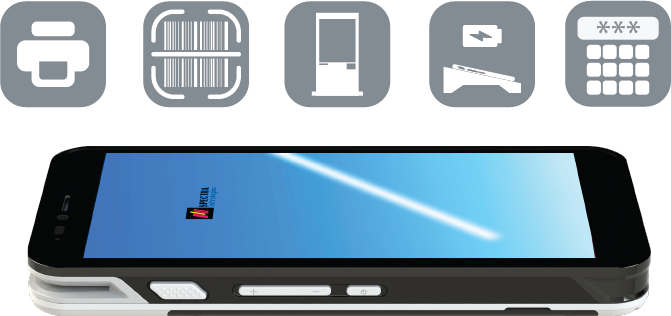

Core Features

Android OS 12
MediaTek Quad-core processor + secure processor
5.5” IPS capacitive multi-touch display
ISO14443 A/B and FeliCa, front-top LCD-side NFC
4G-LTE/3G/2G, dual band WiFi, Bluetooth^®
2500mAh replaceable battery
Optional 5000mAh replaceable battery

Certification of Smart POS S1

Specifications

Processor

MediaTek MT8766 Quad-core A53@ 2.0GHz+ Secure processor

Operating system

Android 12

Memory

1GB RAM+8GB Flash;
2GB RAM+16GB Flash (optional)

Extend memory

Micro SD card x 1

Display

5.5” 720×1440 IPS capacitive multi-touch

Camera

5MP AF rear camera with flash light, 300k pixels FF front camera

NFC

ISO14443 A/B and FeliCa, front-top LCD side

ICC

Smart Card complies with ISO7816

MagCard

Support 1/2/3 Track bi-direction complies with ISO7810/7811

USB port

USB Type C, support 2.0 OTG

Sensor

Proximity sensor near front camera, G-sensor

SIM

Nano SIM x 1 + mini SIM x 1

SAM

SAM slot x 1

Connectivity

4G-LTE/3G/2G, dual band WIFI, Bluetooth^®

Positioning

GPS/GLONASS/BeiDou

Battery

3.8V 2500mAh replaceable battery;5000mAh with printer kit (optional)

Operation temperature

0˚C – 50˚C

Storage temperature

-25˚C – 70˚C

Dimension & weight

Handset: 152(L) X 72(W) X 15.3(D) mm, 215g

Accessories (optional)

Printer kit, 1D/2D barcode scanner kit, self-service kit, charging dock

*Specifications are subject to change without prior notice.

Printer

Without additional Bluetooth® connection needed, this printer kit offers a seamless payment and receipt printing experience.

1D/2D barcode scanner kit

This all-on-one scanner kit allow efficient 1D/2D product barcode scanning process

Self-service kit

Durably and sturdily built, this self-service kit is suitable for most self-service machine payment integrations

Charging Dock

Support USB type-C wire charging dock to let you charge S1 conveniently
