T300U

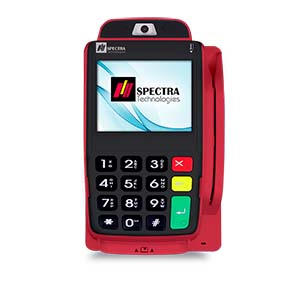

T300 Unattended Payment Terminal

Perfectly fit for self-service solutions


T300 Unattended is one of just a few payment terminals in the market that meets all of the prerequisites to be endorsed as a truly “unattended” unit. It is also certified for use in the outdoor environments, in both heat and cold, and is water and dust resistant. Like all of SPECTRA’s devices, it is built to perform as expected… and last. To ensure customer satisfaction, we work with you to integrate it into your unique retail environment. This sturdy little device pairs perfectly with kiosks, ticketing centers, self- service stores, and vending machines. Our goal: to increase transaction efficiency and deliver a hassle-free customer experience.

Core Features

• Support Magnetic, Smart Card and NFC card
• Generate dynamic QR code
• High performance ARM® Cortex® secure processor
• Large TFT LCD color display
• Built-in MDB interface connect with vending machine controller
• IP54 protection from dust ingress and wet working environment
• Support Ethernet, 3G WCDMA, 4G & Bluetooth®
• USB OTG interface
• PCI 5.X

Optional
• Touch screen
• Front camera
• WIFI
• Ethernet

All-in-one Unattended POS

SPECTRA’s T300 Unattended Payment Terminal offers a robust set of payment features, is operationally reliable in totally unattended environments, and comes housed in a durable, long-lasting case.

Feature of T300 Unattended Payment Terminal

Specifications

Processor

ARM® Cortex®

Display

2.8″ TFT LCD color display (320 x 240)
Touch screen & signature pad (optional)

Reader

Magnetic stripe card
Chip card (EMV)
QR code
NFC Contactless card

Memory

64MB RAM
128/512MB Flash

Keys

15 or no keypad (optional)

Peripheral

RS232 x 1
MDB slave x 1
OTG USB x 1

Card slots

SAM x 1 & SIM x 2 OR
SAM x 2 & SIM x 1

Audio
Yes (optional)
Contactless reader

Contactless reader for ISO 14443 A/B

Camera

CMOS camera in front (optional)

Communication interface

Ethernet
3G WCDMA
4G
Bluetooth®

Power supply

DC 9V with DC power socket or MDB power

Certifications

PCI PTS 5.X
Visa PayWave
JCB J/Speedy
CUP QuickPass
PURE

EMV L1 & L2
MasterCard Contactless
American Express ExpressPay
Discover D-PAS
FCC/CE

Operating temperature

-20 – 65ºC

Storage temperature

-20 – 65ºC

Operating humidity

5 – 90% non-condense

Dimensions & weight

165(L) x 80(W) x 57(H)mm, 340g (no camera)
171(L) x 124(W) x 68(H)mm, 440g (with camera)
Cutout size :
190(L) x 132(W) x 22(D)mm (for EVA Frame)
180(L) x 132(W) x 78(D)mm (for VCCS Frame)

*Specifications are subject to change without prior notice.
