T300 Pinpad

T300 Pinpad

All payment options & high performance

OVERVIEW

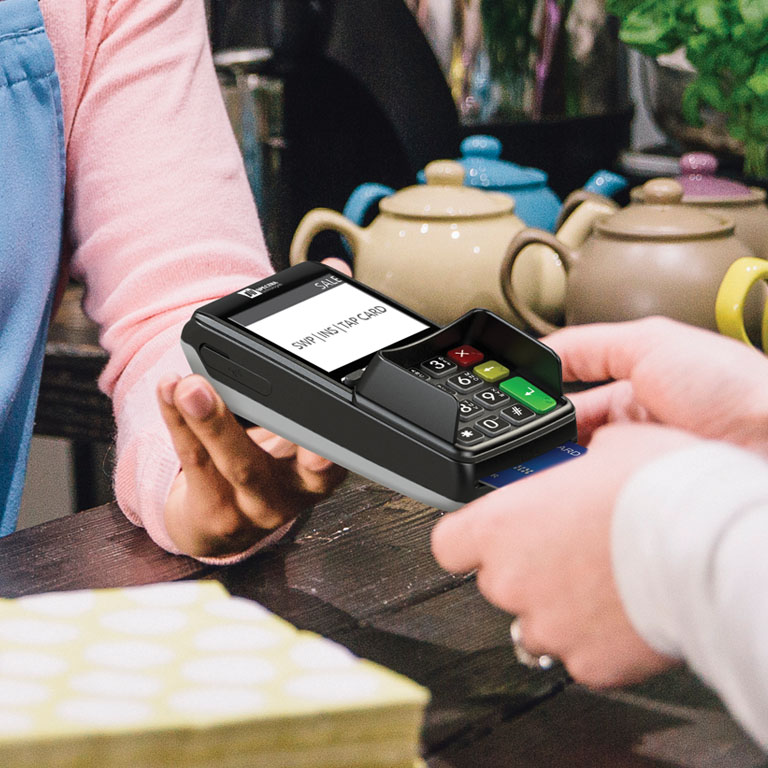

T300 Pinpad is compact in size and provides all secure payment options for EMV chip, swipe and contactless payment. It is designed to integrate with most POS terminals or cash registers in the retail environment.

Core Features

• ARM® Cortex® 500MHz secure processor
• 2.8” LCD color large display
• Support EMV Chip & PIN (PCI PTS V4.x certified)
• Support MagStripe and contactless payment
• Wide keypad

Optional

• Resistive touch screen
• Build-in contactless reader

Feature of T300 Pinpad

Specifications

Processor

ARM® Cortex® 500MHz secure processor

Display

2.8″ LCD color display, 320 x 240
Touch screen & signature pad (optional)

Reader

Magnetic Track 1/2/3
EMV
NFC Contactless

Memory

64MB RAM
128/512MB Flash

Keys

20

Card slots

SAM x max. 2

Communication interface

Ethernet

Peripheral

RS232 x 1
USB x 1 device

Power supply

DC 5V 1A

Audio synthesizer

Optional

  Certifications

PCI PTS
Visa PayWave
American Express ExpressPay
CUP QuickPass
JCB J/Speedy
TQM

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC
FCC/CE/CCC

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

130 (L) x 80 (W) x 32 (H) mm
210g

*Specifications is subject to change without prior notice.
