tap-POS

POS_tap POS 1200x1200 v2

tap-POS

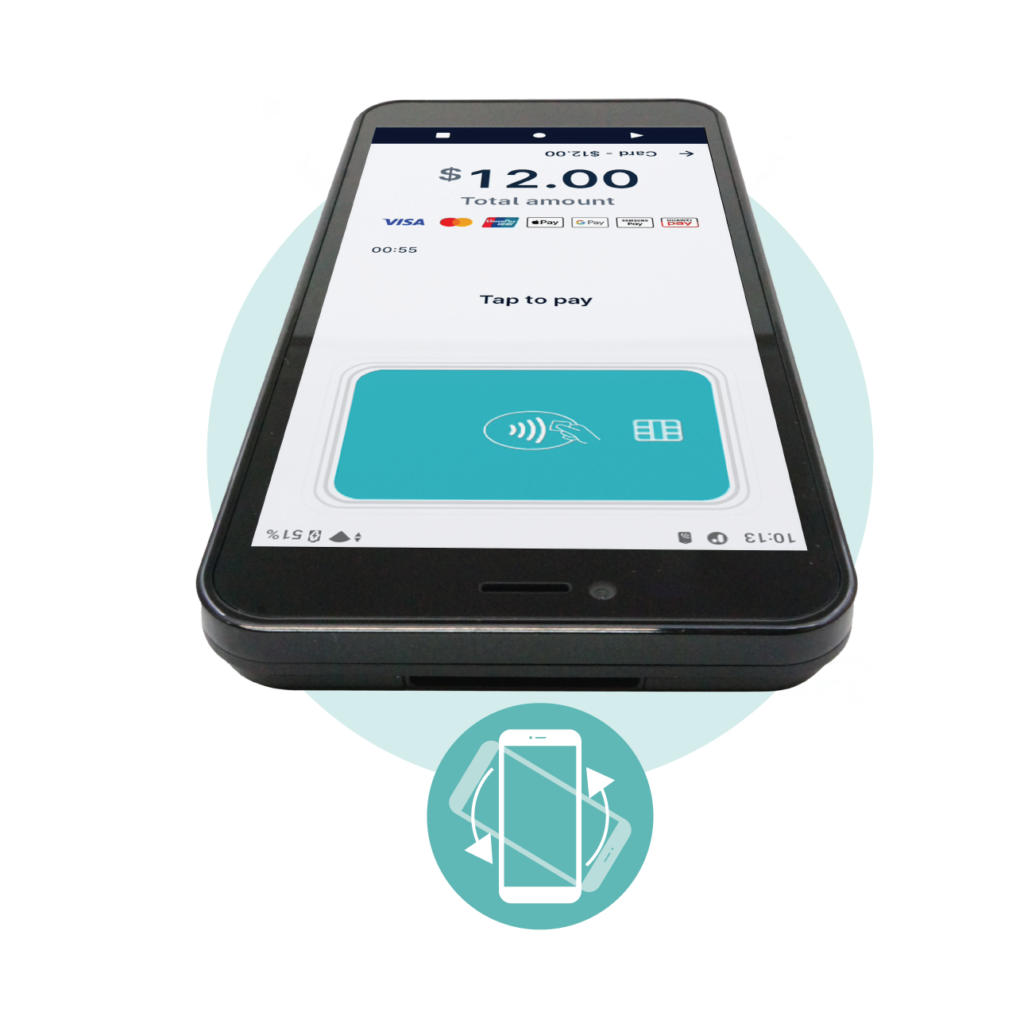

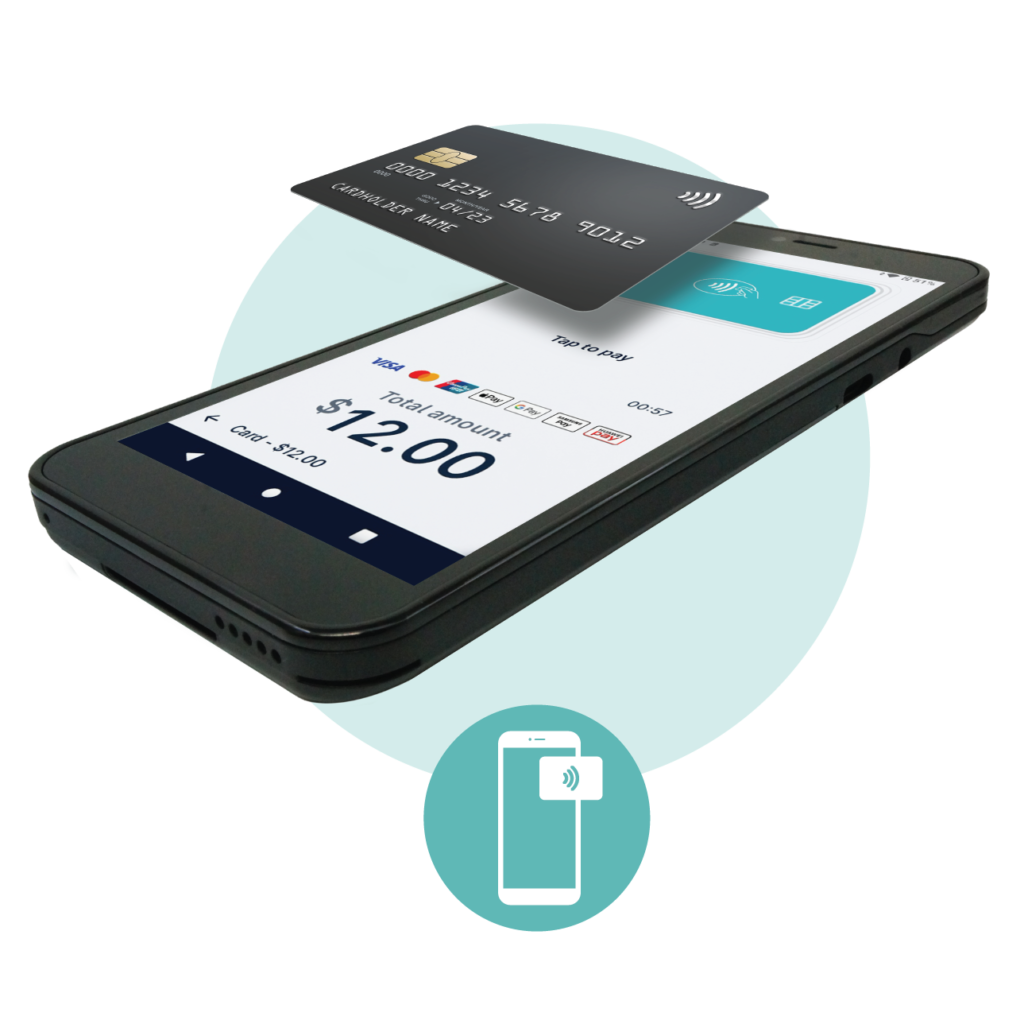

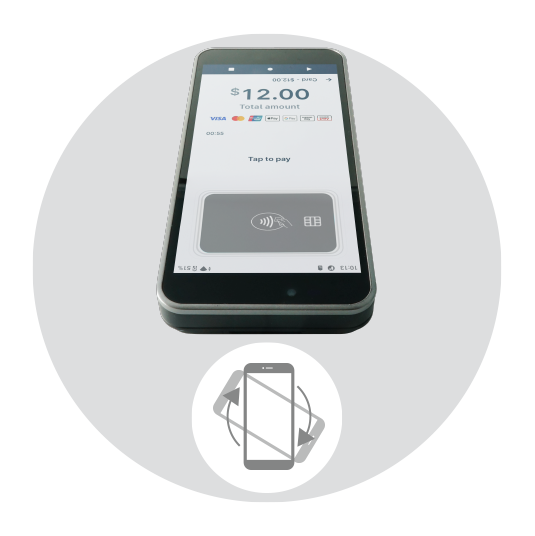

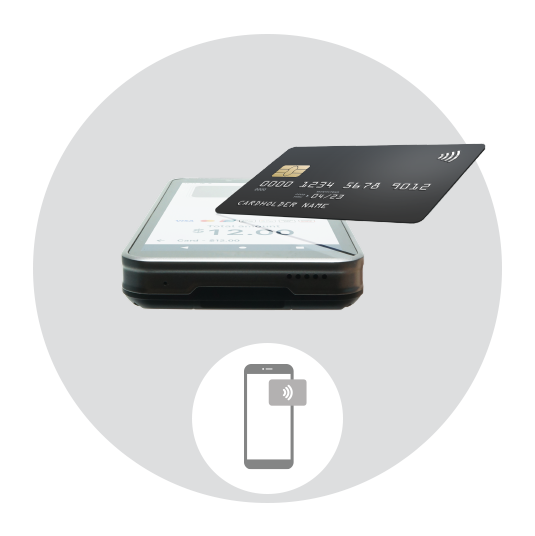

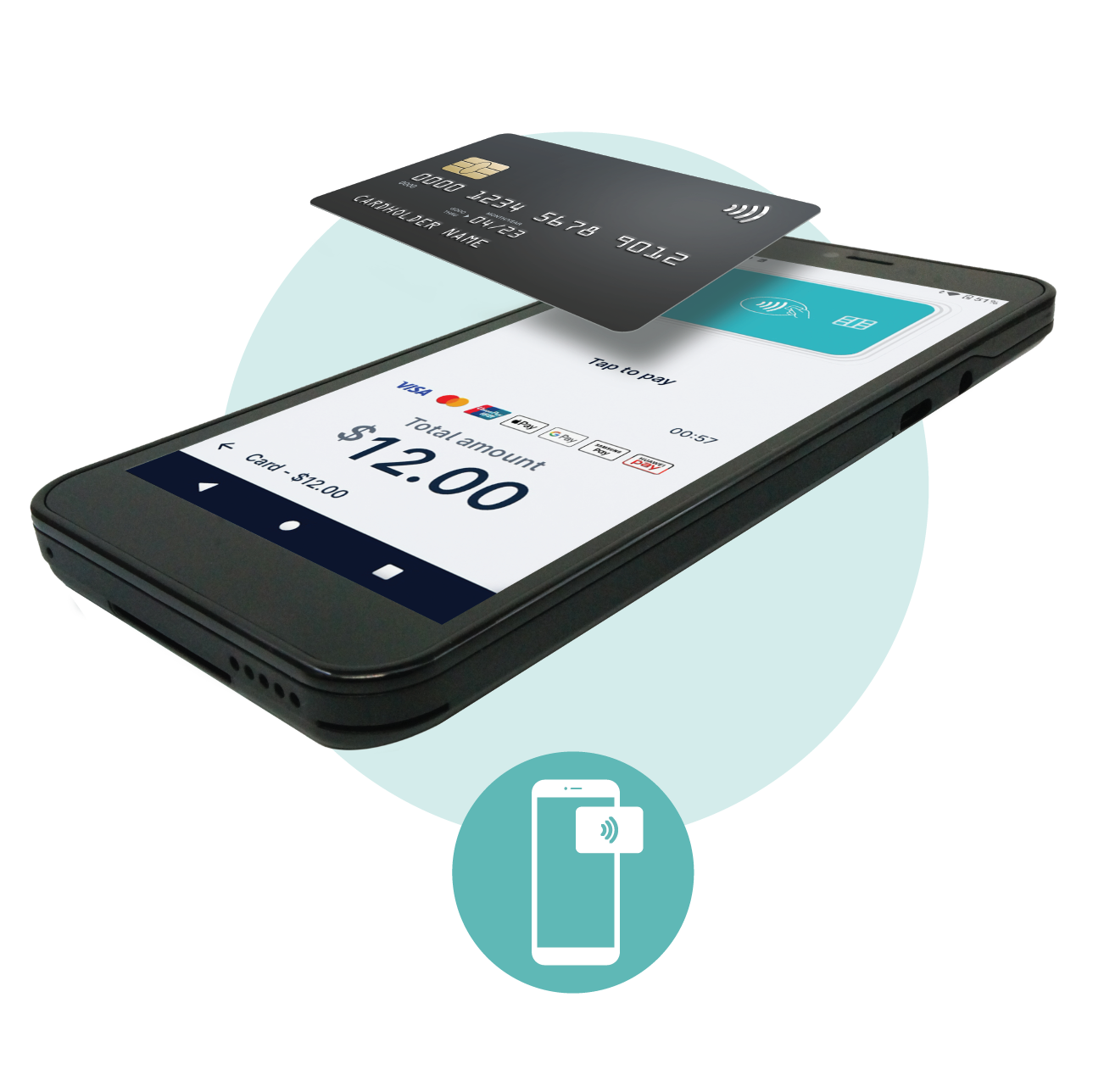

A flexible Android-based device accepts all EMV-based contactless card, digital wallet and QR code payment options

tap-POS – the state-of-the-art SoftPOS system provides a more flexible solution at a lower cost to enhance merchants’ business. With the intuitive control, customers also could enjoy a seamless payment experience.
Accepting all EMV-based contactless cards, digital wallets and QR code payments, together with its lightweight and portable design, it is an ideal option for various scenarios.

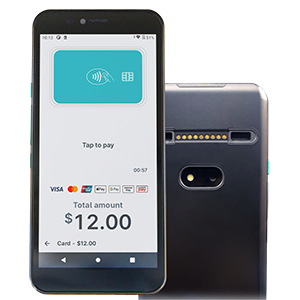

Core Features

• MediaTek Quad-core
• 1GB RAM, 16GB Flash
• Android V11 operating system
• 5.45” FWVGA IPS capacitive multi-point touch
• 2MP FF rear camera with flash light
• 4G-LTE/3G/2G, WIFI/Bluetooth®

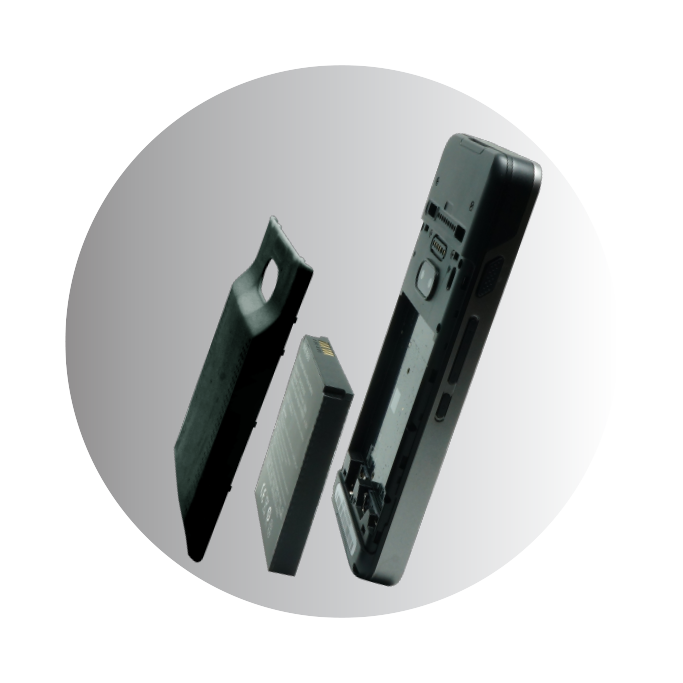

• 2500mAh replaceable battery

Specifications

Processor
MediaTek MT6761 Quad-core A53@ 1.8GHz
Operating system
Android 11 Go edition
Memory

1GB RAM, 16GB Flash;
2GB RAM, 16GB Flash (optional)

Extend memory
Micro SD card x 1
Display
5.45” FWVGA IPS capacitive multi-touch
Camera
2MP FF rear camera with flash light, 300k pixels FF front camera
NFC
ISO14443 A/B and FeliCa, front-top LCD side
Sensor
Proximity sensor near front camera, G-sensor, E-compass
Card slots
Nano SIM x 1
Connectivity

4G-LTE/3G/2G, WIFI/Bluetooth®

Battery

3.8V 2500mAh replaceable battery;
5000mAh with printer kit (optional)

Operation temperature
0˚C- 45˚C
Storage temperature
-25˚C- 70˚C
Dimension & weight

Handset: 152(L) X 72(W) X 10.9(D) mm, 160g

Accessories (optional)
Printer kit, 1D/2D barcode scanner kit, fingerprint kit, self-service kit, charging dock

*Specifications are subject to change without prior notice.

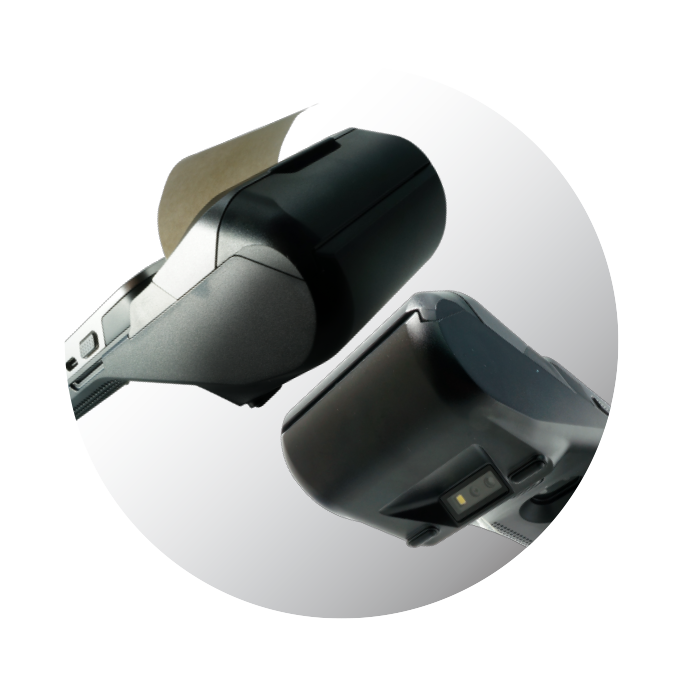

POS_tapPOS printer

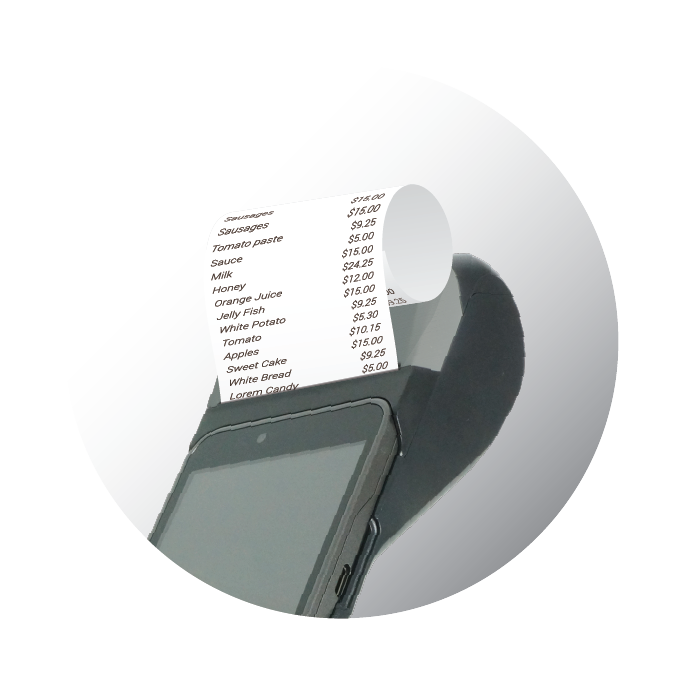

Printer

Simply plug your tap-POS in the 2.25″ thermal printer case for receipt printing without external Bluetooth® connection step.

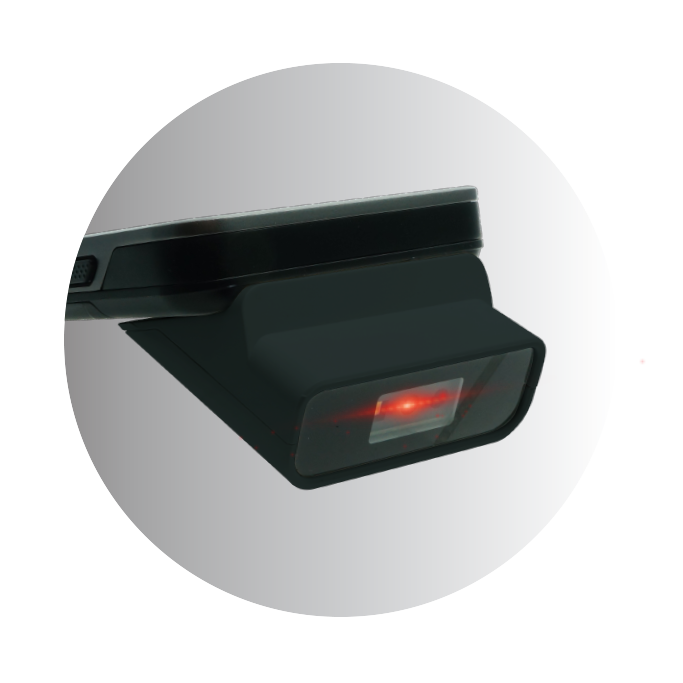

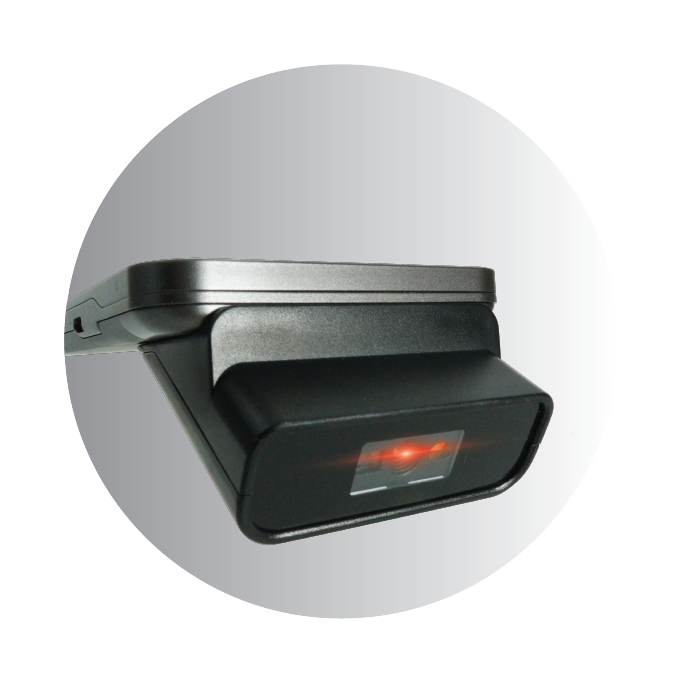

POS_tapPOS Barcode

Barcode scanner

Speed up your product’s 1D/2D barcode scanning process!

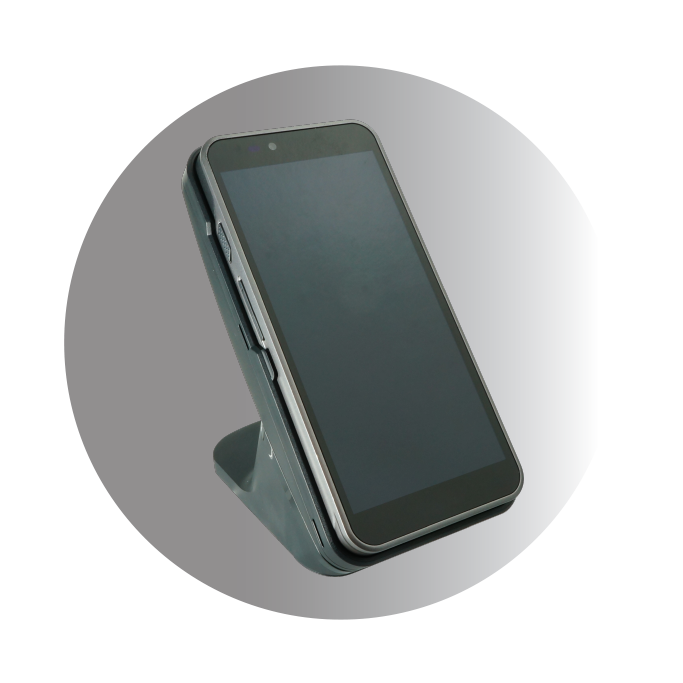

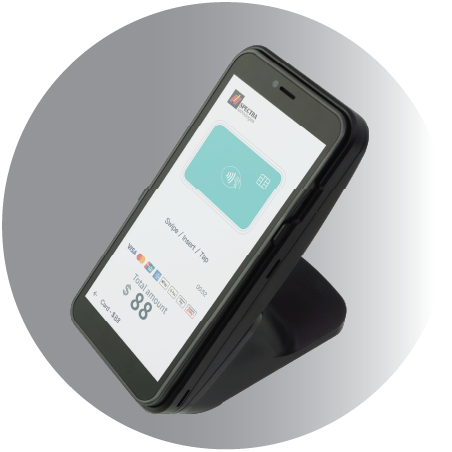

POS_tapPOS docking

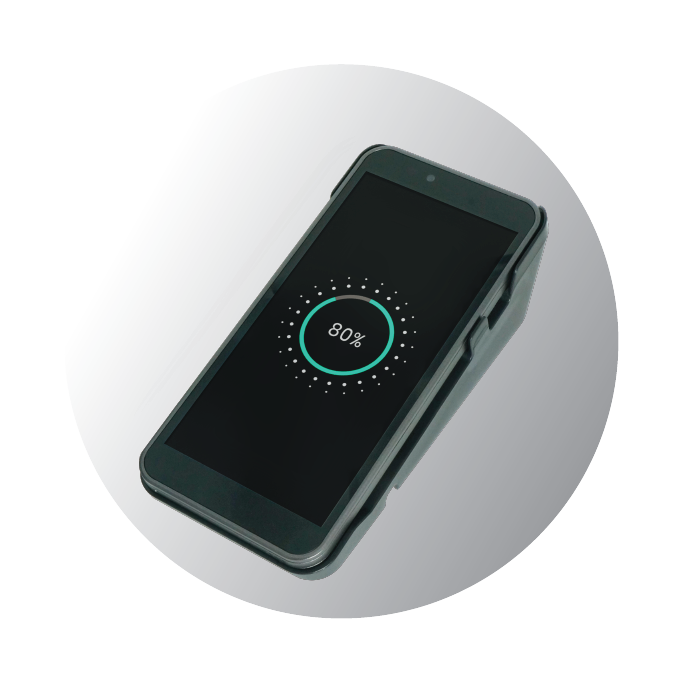

Charging dock

Support USB type-C wire charging dock to let you charge the tap-POS in a more convenient way.

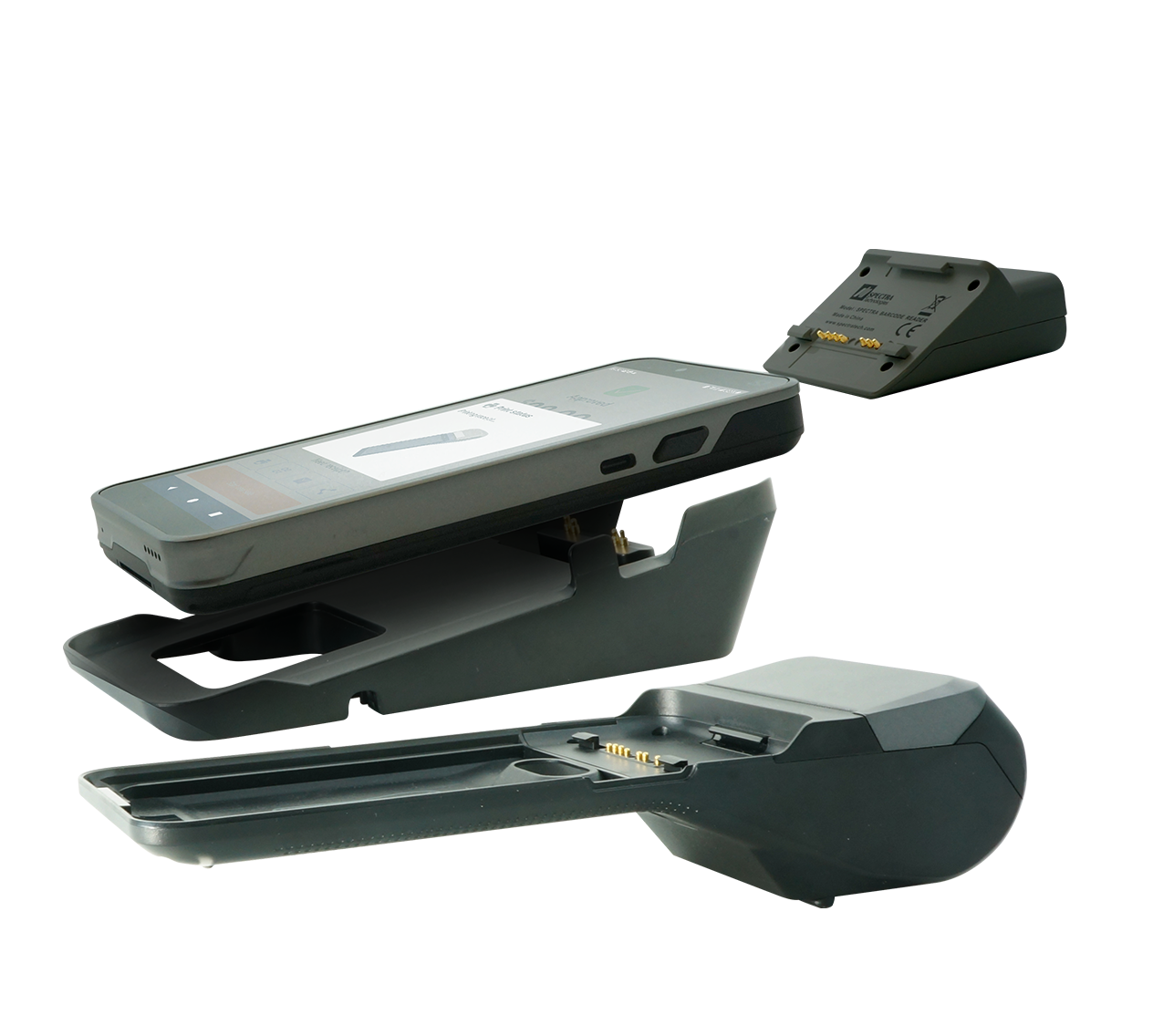

POS_tapPOS bar dock

Barcode with charging dock

Barcode and charging dock accessories all-in-one for easy placement.
POS_tapPOS self

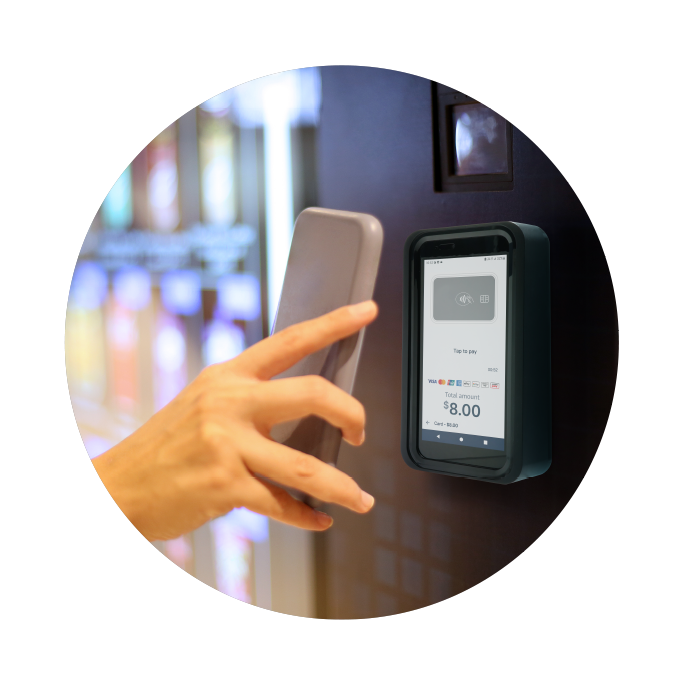

Self-service kit

tap-POS self-service is complied with EVA standard and is suitable for most self-service machine payment integrations.
