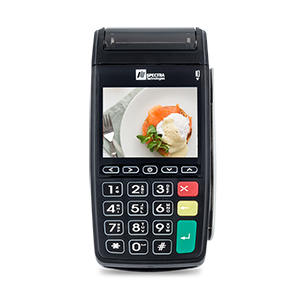

T300 Countertop

All Payment Options & High Performance With Printer

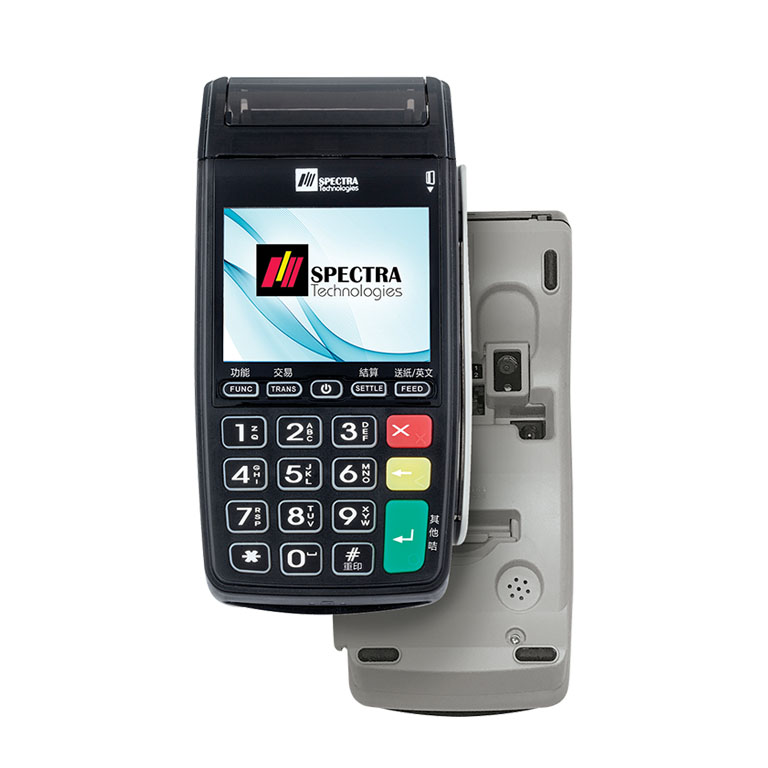

T300 Countertop Terminal is a powerful payment device can handle various payment transactions like credit card, debit card, EMV, loyalty, installment, contactless payment and QR code payment in a single terminal.

Core Features

• ARM® Cortex® 500MHz secure processor
• 2.8″ LCD color large display
• Support EMV Chip and PIN (PCI PTS 5.x certified)
• Support MagStripe and contactless payment
• Support QR base application
• Communication interface with USB OTG & RS232
• Fast thermal printer
• Min. 2600mAh large capacity battery
• Wide keypad

Optional

• Built-in contactless reader
• Resistive touch screen
• GPRS or 3G WCDMA communication, WIFI/Bluetooth® V4.x, Ethernet and dialup modem
• Dual SIM support
• Camera for barcode and QR code
• GPS
• Customize standpole

One-stop Solutions All in T300 Countertop

Specifications

Processor

ARM® Cortex® 500MHz secure processor

Display

2.8″ LCD color display, 320 x 240
Resistive touch screen & signature pad (optional)

Reader

Magnetic Track 1/2/3
EMV
Contactless (optional)
QR code payment

Memory

64MB RAM
128/512MB Flash

Keys

20

Camera

(optional)

Card Slots

SAM x max. 2 (optional)
SIM x max. 2 (optional)

Thermal Printer

Printing speed: 30lines/sec
Paper roll: 40mm diameter

Communication Interface
Dial-up modem, Ethernet Optional: GPRS, GPS, 3G WCDMA, WIFI, Bluetooth®
Peripheral

RS232 x max. 2
USB OTG x 1

Audio synthesizer

(optional)

Battery

Min. 2600mAh rechargeable battery

Power supply

DC 9V 1A

  Certifications

PCI PTS 5.X
Visa PayWave
American Express ExpressPay
CUP QuickPass
JCB J/Speedy
TQM

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC
FCC/CE

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

5 – 95% non-condense

Dimensions & weight

165 (L) x 80 (W) x 63 (H) mm
360g (with battery)

*Specifications are subject to change without prior notice.

Standpole Peripheral

This standpole is special designated for T300 Countertop Terminal which can move more than 270˚ tilt and swivel to fit for end-user needs.
