S1 Plus

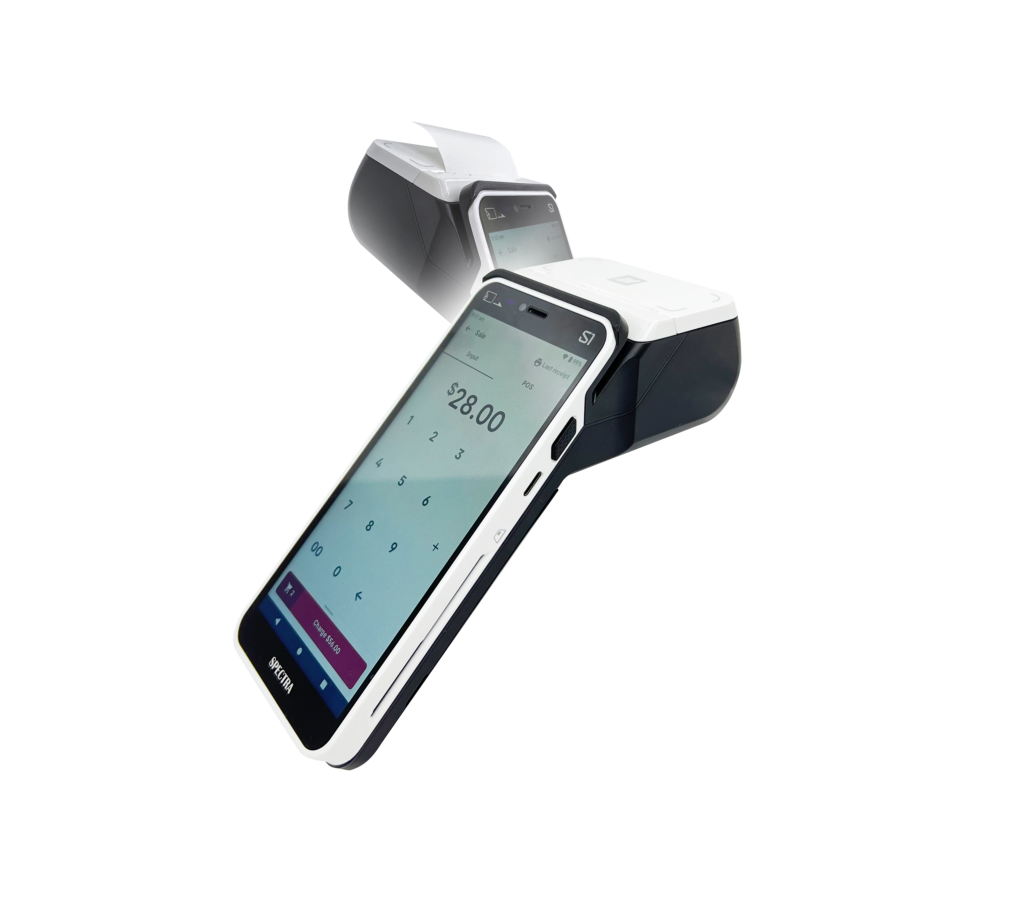

this PCI-certified smart POS comes with an all-in-one design for maximum convenience and reliability

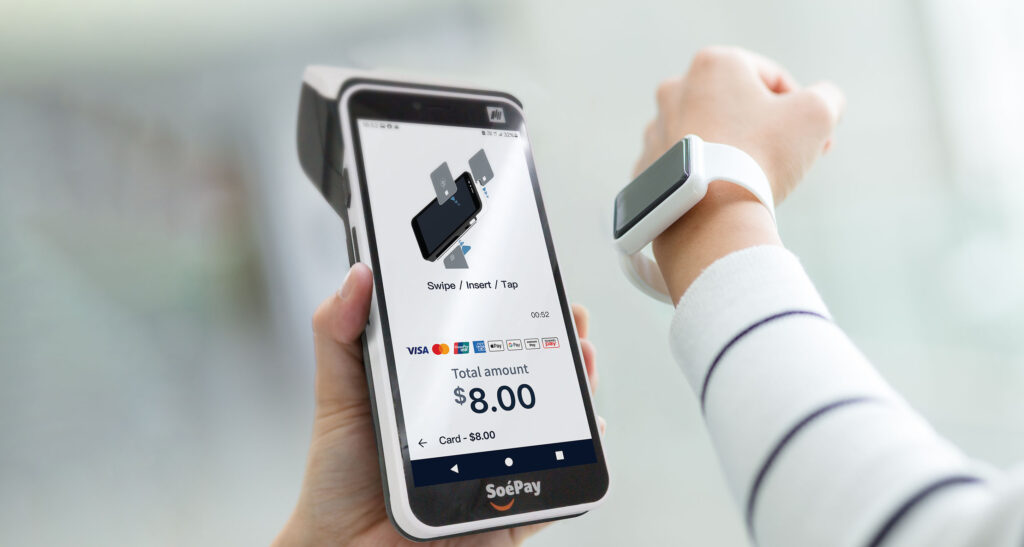

The device operates on Android OS 12 to enhance user-friendliness. The easy-loading, fast and lightweight printer together with the tap-on-screen payment acceptance offer a smooth experience for users

Accepting all EMV-based contact, contactless and QR payment methods, this stylish S1 Plus with a 5.5” IPS capacitive multi-touch display is suitable for most commercial scenes

Core Features

  • Android OS 12
  • MediaTek Quad-core processor + secure processor
  • High speed thermal printer integrated
  • 5.5” IPS capacitive multi-touch display
  • ISO14443 A/B and FeliCa, front-top LCD-side NFC
  • 4G-LTE/3G/2G, dual band WiFi, Bluetooth ®
  • 2500mAh replaceable battery
  • Optional 5000mAh replaceable battery with printer kit available

Certification of Smart POS S1 Plus

Specifications

Processor

MediaTek MT8766 Quad-core A53@ 2.0GHz+ Secure processor

Operating system
Android 12
Memory
1GB RAM+8GB Flash
2GB RAM+16GB Flash (optional)
Extend memory
Micro SD card x 1
Display
5.5” 720×1440 IPS capacitive multi-touch
Camera
5MP AF rear camera with flash light, 300k pixels FF front camera
NFC
ISO14443 A/B and FeliCa, front-top LCD side
ICC
Smart Card complies with ISO7816
MagCard
Support 1/2/3 Track bi-direction complies with ISO7810/7811
USB port
USB Type C, support 2.0 OTG
Sensor
Proximity sensor near front camera, G-sensor
SIM
Nano SIM x 1 + mini SIM x 1
SAM
SAM slot x 1
Connectivity
4G-LTE/3G/2G, dual band WIFI, Bluetooth®

Positioning

GPS/GLONASS/BeiDou

Battery
3.8V 2500mAh replaceable battery for desktop usage
3.8V 5000mAh for mobile usage
Operation temperature
0˚C – 50˚C
Dimension & weight
188(L) X 72(W) X 69(D) mm, total 360g
Storage temperature
-25˚C – 70˚C
Accessories (optional)
Charging dock

*Specifications are subject to change without prior notice.
