SP530 pinpad

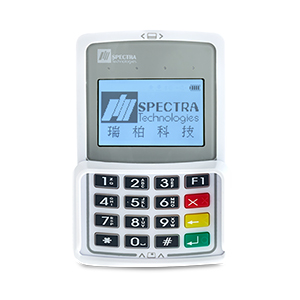

SP530 Pinpad

Compact & handy POS with high security

SP530 Pinpad supports iOS/Android connection to pair a smart phone, tablets or PDA for mobile payments. It offers the latest PCI PTS V4.0 security, EMV Level 1 & 2, EMV Contactless L1 certification which brings high security and reliable performance to process a variety of transactions.

Core Features

• High performance ARM® Cortex® secure CPU
• Clear display with white LED backlight
• Smart card reader and magnetic card reader
• Suitable for POS system, payment terminals, desktop terminals and cash register systems integration

Optional
• NFC/contactless reader for EMV, Visa payWave, Mastercard Contactless
• Micro SD interface

Benefits

• Light and compact design
• Suitable for desktop terminals and cash register systems integration
• Ideal for any size of retailers to integrated with existing POS system or payment terminals

Feature of SP530 Pinpad

Specifications

Processor

ARM® Cortex® secure processor

Display

LCD Monochrome, 128 x 64

Reader

Triple track bidirectional MSR
EMV Contact
NFC Contactless

Memory

256KB RAM
8/16MB Flash

Card Slots

SAM x 1 (optional)
Micro SD x 1 (optional)

Keys

16

Buzzer

A single tone beeper

Cable Connection

Spiral cable with USB plug (type A) or RS232 (serial RJ11/DB9)

Power supply

DC 5V from spiral cable

  Certifications

PCI PTS 4.x with SRED
Visa payWave
CUP QuickPass
PURE

EMV contact L1 & L2
EMV contactless L1
Mastercard Contactless
Mastercard TQM

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

5 – 95% non-condense

Dimensions & weight

110 (L) x 70 (W) x 36 (H) mm
220g

*Specifications are subject to change without prior notice.
