apollo

APOLLO

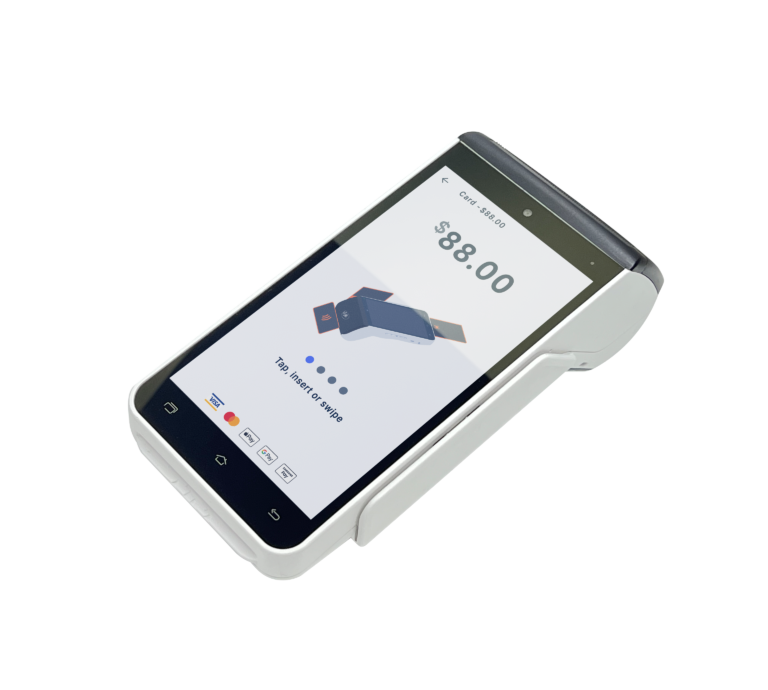

Mobile all-in-one Android based POS with API developer support
APOLLO is the first android based terminal at SPECTRA. This smart device position itself is a breakthrough of payment terminals. Besides its all-in-one payment  acceptance, APOLLO delivers ultimate hardware capability from software development to custom-made solutions for merchants.
APOLLO+QR

Core features

ARM® Cortex®secure processor

Android module based on Qualcomm Quad-core A7 1.1 GHz

Large memory with 1GB RAM + 8GB Flash

Android V7.1 operating system

5.5” LCD color display with cap sense multi-touch screen

Support 1D/2D barcode decode
5MP CMOS rear camera with flash light, and 0.3MP CMOS front camera

Bluetooth® dual mode, WIFI, GPS/GLONASS/BEIDOU
4G FDD and TDD/WCDMA/GSM/GPRS

Support dual SIM

One user defined shortcut button

API Developer Support

User friendly Android base platform with API support – flexible development – to enhance the performance under different industries needs.

apollo

Optional

Fingerprint sensor

Docking unit
• Designated for the APOLLO device
• Mirror at front of docking unit for QR code reading by handset
• Charging docking without mirror, max. 3 USB host and 1 Ethernet port

All-in-one POS terminal

APOLLO is an Android-based smart payment terminal; it accepts every kind of payment and offers the most advanced payment experience. It comes with a card reader for chip and contactless cards, camera for QR code payments, and a multitouch screen for electronic signature capture. Designed with user-centered in mind, APOLLO works perfectly standalone or integrated with your POS system.

Software and development

APOLLO dedicated SDK and API make it easier for Android developers to start software development in APOLLO. It not only supports aggregated payment methods but also can be integrated with online and in-store marketing platforms of merchants.

Cloud based merchant portal - MARS

Alongside with APOLLO, the Merchant & Acquirer Revenue System (MARS) is a cloud-based management platform to streamline your daily operations and lower operating cost. The Cloud-based platform “MARS”, offering omnichannel payment details at a glance to retailers in real time and providing detailed analysis reports. Retailers can offer the best payment experience as possible to consumers to increase customer loyalty and sales opportunities.

The 3 tiers in the APOLLO ecosystem

Development​

For developers and service providers to create apps or integration.

API

Software integration for ECR integration or value add apps

SDK

Software development for payment or non-payment purpose

Transaction​

The core mechanics are built around the APOLLO smart terminal for payment transactions, including the payment app developed by SPECTRA, terminal apps for receipts, configs and so on, and the payment gateway for multi-processor service.

APOLLO

Accept every payments with different value added apps

Payment Core​

Handle the transaction related logic​

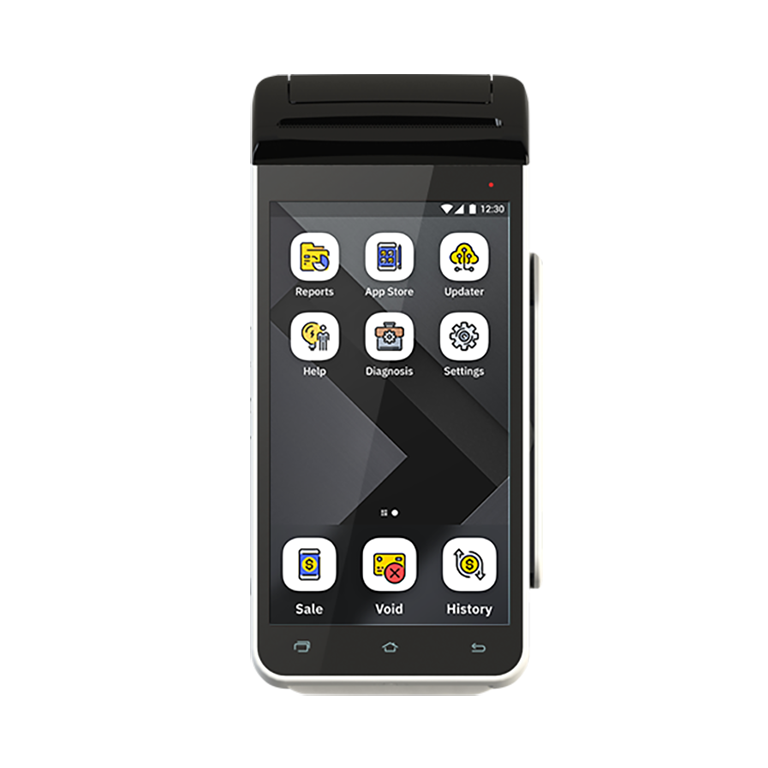

Terminal​ Apps

Basic POS, transaction history, help and more

Payment Gateway

Process eCommerce payment or gateway transactions

Service

Supporting software and services. Value-added apps are also included.

MARS (merchant)

View transactions, reports, searching, filtering and more

MARS (acquirer)​

Realtime terminal monitoring and remote configs update

Marketplace

Find and install apps

Value-added Apps

Suit merchant’s specific need

Developer Portal

SDK & API documentation, download and dev registration

Specifications

Table Header Table Header
Processor
ARM® Cortex® Secure Processor Qualcomm Quad-core A7 1.1GHz
Display
5.5″ TFT color display, 1280 x 720, 16.7M Cap sense multi-touch screen, support electronic signature
Reader
Magnetic Track 1/2/3, EMV, NFC Contactless, QR code payment
Operating System
Android V7.1
Memory
1GB RAM + 8GB Flash, 2GB RAM + 16GB Flash (optional)
Camera
5MP auto zoom camera with flash light, 0.3MP CMOS front camera, Support 1D/2D barcode decode
Card Slots
SAM x 1, Micro SD x 1 (optional), SIM x 2 (optional)
Thermal Printer
2.25″ Thermal, Printing speed: 18lines/sec, Paper roll: 40mm diameter
Communication Interface
WIFI (single/dual band, direct), Bluetooth®, GPS/GLONASS/BEIDOU, Dual SIM standby, Internal antennas, 2G/3G/4G FDD & TDD
Peripheral
USB OTG x 1 (Type C)
Docking
Optional
Audio
Speaker x 1, Microphone x 1, support voice recording and playback
Battery
7.2V 2600mAh rechargeable battery (nominal)
Power supply
DC 5V 2A USB adaptor for charging only (will be changed when being shipped with docking)
Keys
On/off, Vol up/down, one shortcut key
Certifications
PCI PTS 5.X, EMV L1 & L2, Visa PayWave, MasterCard Contactless, American Express ExpressPay, SRED, JCB J/Speedy, QPBOC, TQM, FCC/CE, MCCS Contactless Acceptance Device Type Approval, VCCS Contactless Kernel Type Approval
Operating temperature
0 – 45ºC
Storage temperature
-20 – 70ºC
Operating humidity
0-85% non-condense
Dimensions & weight
180 (L) x 84 (W) x 61 (H) mm, 450g (without fingerprint)
*Specifications are subject to change without prior notice.
