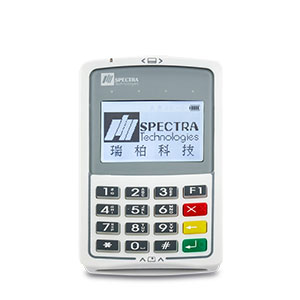

SP530 mPOS

SP530 mPOS

Compact size & handy POS ideal for any merchants’ need

OVERVIEW
SP530 mPOS supports iOS/Android connection to pair your existing smart phone, tablets or PDA for mobile payments. It offers the latest PCI PTS V4.0 security, EMV Level 1 & 2, EMV Contactless L1 certification which brings high security and reliable performance to process a variety of transactions.

Core Features

• High performance ARM® Cortex® secure CPU
• Large display with white LED backlight
• Support EMV Chip & PIN
• Support MagStripe and Contactless payment
• Support iOS/Android base smartphone/tablet/PDA’s payment application via Bluetooth® pairing
• Micro USB 2.0 device port full speed
• 140g ultra light and compact size with stylish design

Benefits

• Ergonomic and compact design
• Performance suitable for mobile payment
• Simple and user-friendly operation application platform
• Replaceable battery
• Optional NFC contactless reader certified with MasterCard PayPass and Visa PayWave
• Ideal for any retailers to accept mobile payment reliably

Feature of SP530 mPOS

Specifications

Processor

ARM® Cortex®

Display

LCD Mono display, 128 x 64

Reader

Magnetic Track 1/2/3
EMV
NFC Contactless (optional)

Memory

256KB RAM
8/16MB Flash

Card Slots

SAM x Max. 1 (optional)
Micro SD x 1 (optional)

Keys

17

Communication Interface

Bluetooth®

Peripheral

USB x 1 device

Power supply

DC 5V 500mA (USB 2.0)

Battery

480mAh rechargeable battery

  Certifications

PCI PTS
Visa PayWave
CUP QuickPass
TQM
FCC/CE/CCC

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

110 (L) x 70 (W) x 19 (H) mm
140g

*Specifications is subject to change without prior notice.

Docking Peripheral

Always on, avoid interrupted of transaction due to battery low with stylish lightweight and space saving design.

BP80 Bluetooth® Printer Peripheral

Ultra light and portable printer – BP80. It can pairing with our mPOS terminal by Bluetooth®.
