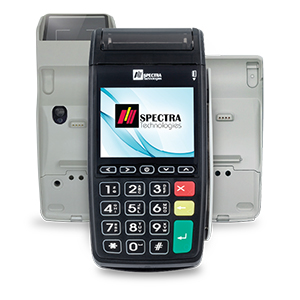

T300 Intelligent Docking

POS_Thumbnails T3000Dock

T300
Intelligent Docking

QR Code Payment & Charge

SPECTRA T300 with intelligent docking allows seamless ECR linkage which perfectly fits different payment environments. It neatly manages peripherals without sacrificing the mobility of the T300 POS terminal and thoughtfully combines optical technology with mechanical design to enhance QR payment experiences. It is an ideal solution for payment applications in retail, catering and hotel environments.


POS_T300CT Feature1 v2

Features

• ARM® Cortex® A5 secure processor
• 2.8” LCD color resistive touch screen
• 64MB RAM, 512MB Flash
• Supports EMV Chip & PIN (PCI PTS 5.x certified)
• Supports Magstripe & Contactless payments
• Supports QR base applications
• 3G with Dual SIM
• Modem 56kbps & Ethernet 100BaseT interface via Bluetooth® or IR communications interfaces
• Fast thermal printer

POS_T300Docking Feature2 v3

Optional

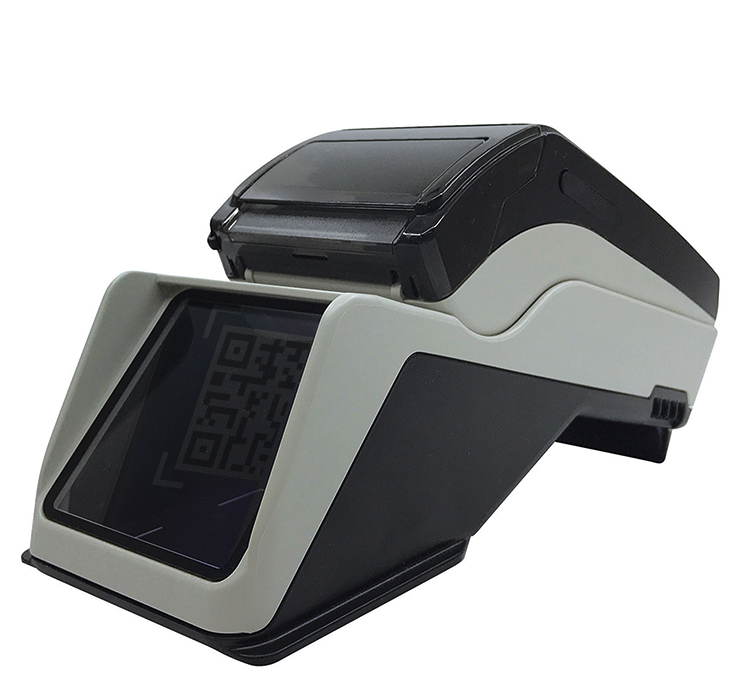

• Mirror at front of docking unit reflected QR code reading by handset

Specifications
Handset
Processor

ARM® Cortex® 500MHz secure processor

Display

2.8″ LCD color display (320 x 240)
Resistive touch screen & signature pad (optional)

Payment acceptance types

Magnetic track 1/2/3
EMV
QR code base application
NFC Contactless

Memory

64MB RAM, 512 / 128 MB Flash

Keys

20

Camera

(optional)

Card Slots

SAM x max. 2 (optional)
SIM x max. 2 (optional)

Thermal Printer

Printing speed: 30lines/sec
Paper roll: 40mm diameter

Communication Interface

Optional: GPRS/3G WCDMA
Wifi / Bluetooth®, GPS

Audio

(optional)

Battery

Min. 2600mAh rechargeable battery

Power supply

Min. 9V for handset

Operating temperature

0-45ºC

Storage temperature

-20-70ºC

Operating humidity

5 – 95% non-condense

Certifications

PCI PTS 5.X
EMV L1 & L2
Visa PayWave
MasterCard Contactless
JCB J/Speedy
American Express ExpressPay
CUP QuickPass
SRED
PURE
TQM
FCC/CE

Intelligent Docking
Communication interfaces

Dial-up modem
100baseT Ethernet
USB host x 1
USB slave x 1

Peripheral

RS232 x max. 2

Others

On/Off Switch x 1
LED indicator x 1
Contact pins for handset charging

Power Input

DC 9.5V 1A

Weight & Dimension

Docking with mirror only:
221(L)x86(W)x69(H)mm, 252g
Handset & Docking:
21(L)x86(W)x106(H)mm, 570g


Docking without mirror only:
162(L)x79(W)x43(H)mm, 170g
Handset & Docking:
170(L)x 81(W)x81(H)mm, 488g

*Specifications are subject to change without prior notice.

You may interest…

POS_Thumbnails T1000 2

T1000 Countertop

POS_Thumbnails SR300 2

SR300 Contactless Reader with Camera

POS_Thumbnails T300Uwithcamera

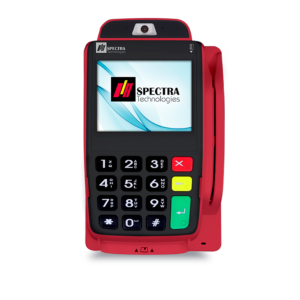

T300 Unattended
