T300 Intelligent Docking

QR Code Payment & Charge
SPECTRA T300 with intelligent docking allows seamless ECR linkage which perfectly fits different payment environments. It neatly manages peripherals without sacrificing the mobility of the T300 POS terminal and thoughtfully combines optical technology with mechanical design to enhance QR payment experiences. It is an ideal solution for payment applications in retail, catering and hotel environments.

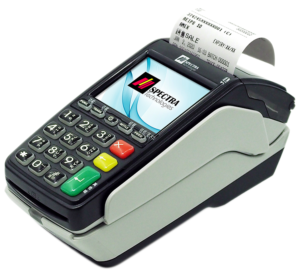

POS_T300CT Feature1 v2

Features

ARM® Cortex® A5 secure processor

2.8” LCD color resistive touch screen

64MB RAM, 512MB Flash

Supports EMV Chip & PIN (PCI PTS 5.x certified)

Supports Magstripe & Contactless payments

Supports QR base applications

3G with Dual SIM

Modem 56kbps & Ethernet 100BaseT interface via Bluetooth® or IR communications interfaces

Fast thermal printer

Optional
Mirror at front of docking unit reflected QR code reading by handset

POS_T300Docking Feature2 v3

Specifications

Table Header Table Header
Handset
Processor
ARM® Cortex® 500MHz secure processor
Display
2.8″ LCD color display (320 x 240), Resistive touch screen & signature pad (optional)
Payment acceptance types
Magnetic track 1/2/3, EMV, QR code base application, NFC Contactless
Memory
64MB RAM, 512 / 128 MB Flash
Keys
20
Camera
(optional)
Card Slots
SAM x max. 2 (optional), SIM x max. 2 (optional)
Thermal Printer
Printing speed: 30lines/sec, Paper roll: 40mm diameter
Communication Interface
Optional: GPRS/3G WCDMA, Wifi / Bluetooth®, GPS
Audio
(optional)
Battery
Min. 2600mAh rechargeable battery
Power supply
Min. 9V for handset
Certifications
PCI PTS 5.X, EMV L1 & L2, Visa PayWave, MasterCard Contactless, JCB J/Speedy, American Express ExpressPay, CUP QuickPass, SRED, PURE, TQM, FCC/CE
Operating temperature
0-45ºC
Storage temperature
-20-70ºC
Operating humidity
5 – 95% non-condense
Intelligent Docking
Communication interfaces
Dial-up modem, 100baseT Ethernet, USB host x 1, USB slave x 1
Peripheral
RS232 x max. 2
Others
On/Off Switch x 1, LED indicator x 1, Contact pins for handset charging
Power Input
DC 9.5V 1A
Weight & Dimension
Docking with mirror only:
221(L)x86(W)x69(H)mm, 252g
Handset & Docking: 221(L)x86(W)x106(H)mm, 570g

Docking without mirror only:
162(L)x79(W)x43(H)mm, 170g
Handset & Docking: 170(L)x 81(W)x81(H)mm, 488g

*Specifications are subject to change without prior notice.
