BP80

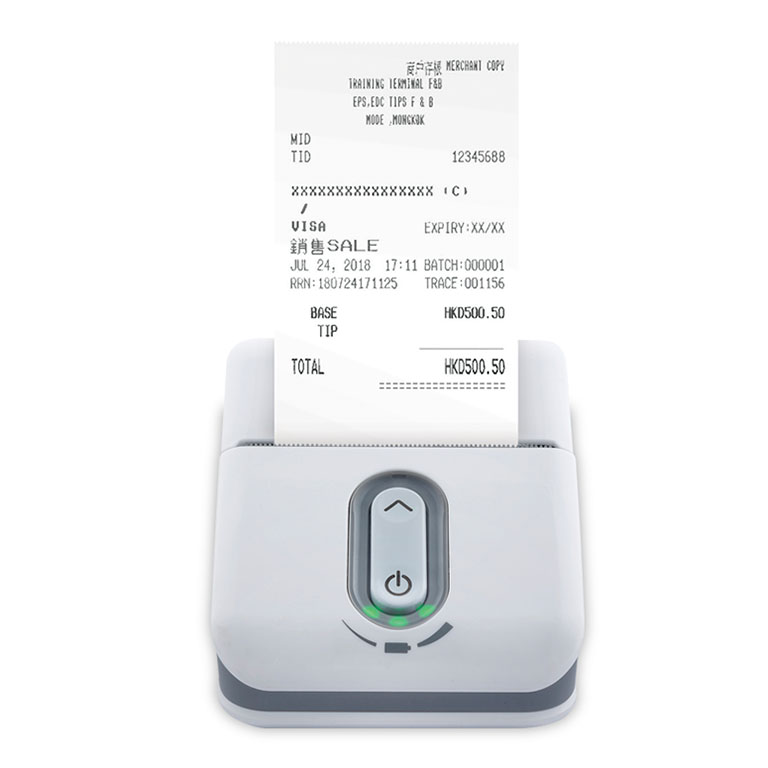

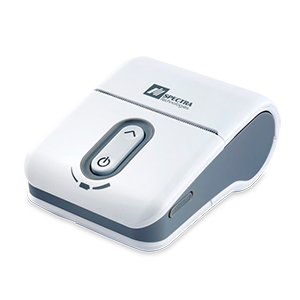

BP80 Bluebooth® Printer

Ultra light & portable printer

OVERVIEW
BP80 is a compact and lightweight handheld portable printer designed with an attractive appearance, clear status indicator on the front and large capacity battery. BP80 can print at high speed and with no noise in the printing process. With an easy paper loading design, the device becomes very
user friendly and

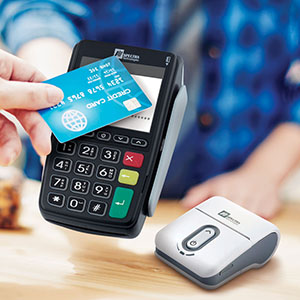

easily implemented by Bluetooth connection with any mPOS
or payment devices
.

Core Features

• With status indicator LED, easy maintenance
• High-speed printing, high-quality, low noise level
• Easy paper loading design, paper width 58mm
• Large capacity battery (Stand by time 5~6 days)
• Bluetooth® module V4.x and USB 2.0 slave interface
• Support bitmap logo printing
• Belt clip for easy carry

Application

• Mobile POS/retails
• Checkout/payment counter
• Door to door deliveries
• Field repair services/installation
• Hospitality/restaurant
• Ticketing/lottery
• Bus/taxi receipt

Specifications

Processor

ARM® processor

Memory

Above 1MB Flash

Keys

2

Thermal Printer

Printing speed: 20lines/sec
Paper roll: 40mm diameter

Communication Interface

Bluetooth®

Peripheral

USB 2.0 Slave

Power supply

DC 5V 1A (USB)

Battery

Min. 2600mAh rechargeable battery

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

106 (L) x 76 (W) x 46 (H) mm
190g

*Specifications is subject to change without prior notice.
