POS_Thumbnails SP530mPOS

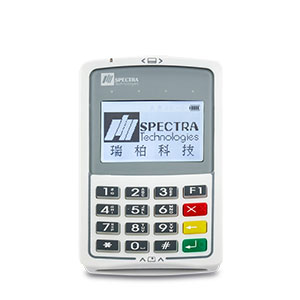

SP530 mPOS

Compact size & handy POS ideal for any merchants’ need
SP530 mPOS supports iOS/Android connection to pair a smart phone, tablets or PDA for mobile payments. It offers the latest PCI PTS V4.0 security, EMV Level 1 & 2, EMV Contactless L1 certification which brings high security and reliable performance to process a variety of transactions.
POS_SP530 Feature1

Core Features

High performance ARM® Cortex® secure CPU

Large display with white LED backlight

Support EMV Chip & PIN

Support Magstripe and Contactless payment

Support iOS/Android base smartphone/tablet/PDA’s payment application via Bluetooth® pairing

Micro USB 2.0 device port full speed

140g ultra light and compact size with stylish design

POS_SP530 Feature2


Ergonomic and compact design

Performance suitable for mobile payment

Simple and user-friendly operation application platform

Replaceable battery

Optional NFC contactless reader certified with MasterCard PayPass and Visa PayWave

Ideal for any retailers to accept mobile payment reliably

POS_SP530pp Feature

Accessories (optional)

POS_Docking 01 1

Docking Peripheral

Always on, avoid interrupted of transaction due to battery low with stylish lightweight and space saving design.

POS_Thumbnails BP80 3

BP80 Bluetooth® Printer Peripheral

Ultra light and portable printer – BP80. It can pairing with our mPOS terminal by Bluetooth®.


Table Header Table Header
ARM® Cortex®
LCD mono display, 128 x 64
Magnetic Track 1/2/3, EMV, NFC Contactless (optional)
256KB RAM, 8/16MB Flash
Card Slots
SAM x Max. 1 (optional), Micro SD x 1 (optional)
Communication Interface
USB x 1 device
Power supply
DC 5V, 500mA (USB 2.0)
PCI PTS 4.0, EMV L1 & L2, Visa PayWave, MasterCard Contactless, CUP QuickPass, SRED, TQM, QPBOC, FCC/CE/CCC
Operating temperature
0 – 45ºC
Storage temperature
-20 – 70ºC
Operating humidity
5 – 95% non-condense
Dimensions & weight
110 (L) x 70 (W) x 19 (H) mm 140g
*Specifications are subject to change without prior notice.
