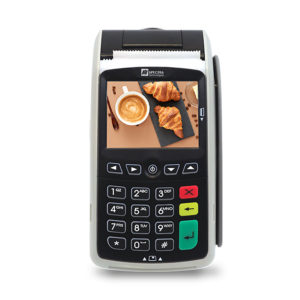

T1000 Mobile

Fast & secure transaction process with build-in thermal printer

OVERVIEW

T1000 Mobile combining the powerful 32-bit ARM9 CPU assures fast and reliable payment from credit and PIN-based debit to EMV smart cards transactions, meeting the future industry standard with PCI PTS V4.X certification. It is designed with light weight for handheld. Its palm comfort case, big size key buttons and color display can deliver you an awesome experience of payment transaction operation. Apart from being a portable handheld device, a small bottom mounted stand will convert the petite T1000 to a cute mobile terminal.

Core Features

• High resolution color display
• Broadband and dialup as backup
• Fast, quiet, easy-load thermal printer
• Compact in size, light weight
• Keypad with backlight
• Support remote software updates
• Modular design suit for different types of application
• Support multimedia, brand promotion, messaging, alerts
• Large memory design to cater for multi-application

Light Weight & Comfort Portable design

T1000’s palm comfort case, big size key buttons and color display can deliver you an awesome experience of payment transaction operation. Apart from being a portable handheld device, a small bottom mounted stand will convert the petite T1000 to a cute mobile terminal.

One-stop Solutions All in T1000 Mobile

Highly Secure and Reliable

Meeting the future industry standard with PCI PTS V4.X certification, and highly secure and reliable with international certifications (EMV Level 1 & 2, Visa PayWave, MasterCard PayPass, TQM, PBOC and FCC/CE/CCC).

Optional

• Built-in contactless reader
• 1D or 2D bar code reader
• 2.8” LCD color large display
• Touch screen
• GSM/GPRS, 3G/WCDMA and WIFI
• Large capacity battery
• Audio synthesizer with build-in speaker
• Large paper roll housing

Specifications

Processor

ARM® Cortex®

Display

2.8″ LCD color display, 320 x 240
Touch screen & signature pad (optional)

Reader

Magnetic Track 1/2/3
EMV
NFC Contactless (optional)

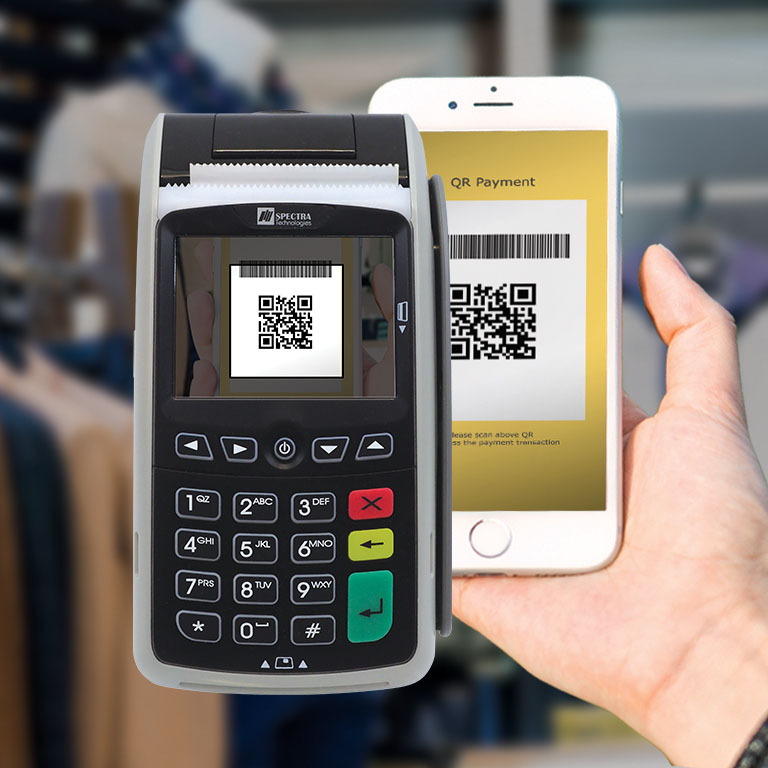

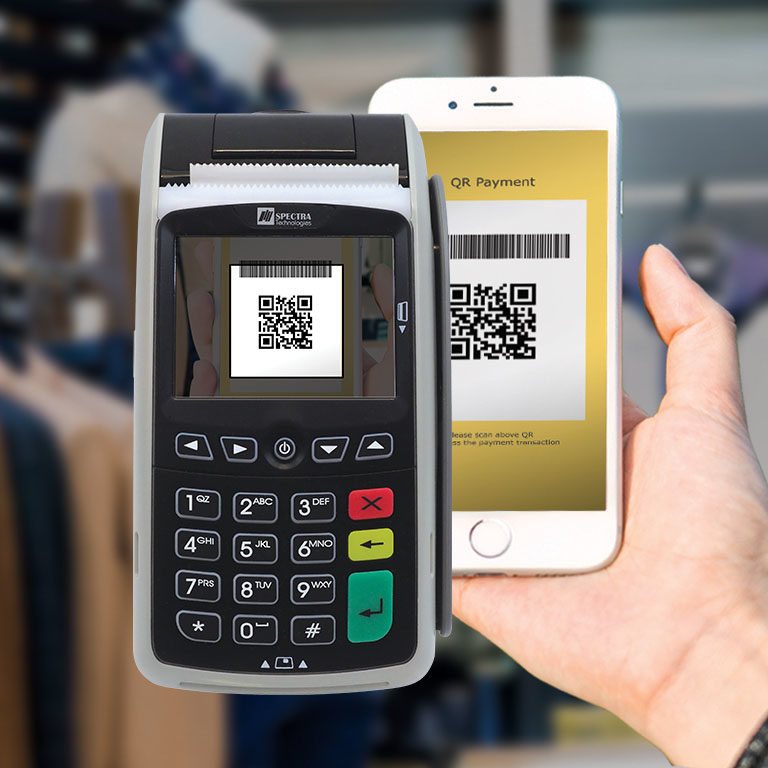

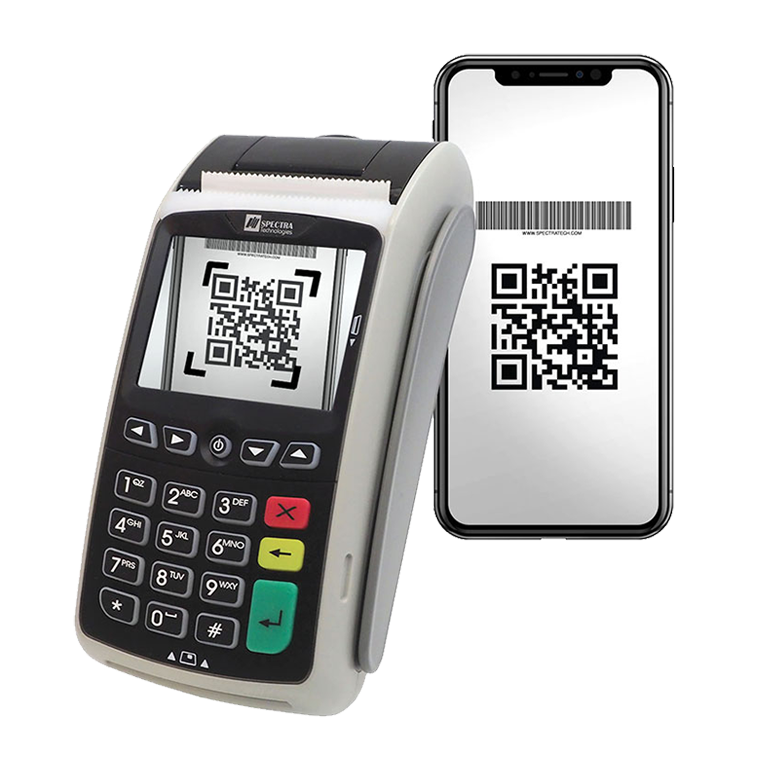

QR code payment (optional)

Memory

64/128MB RAM
128/512MB Flash

Keys

20

Camera

Optional

Card Slots

SAM x max. 4
Micro SD x 1 (optional)
SIM x 2 (optional)

Thermal Printer

Printing speed: 30lines/sec
Paper roll: 40/50mm diameter

Communication Interface

GPRS/3G/WIFI, GPS, Modem, Ethernet

Peripheral

RS232 x 2
USB OTG x 1

Audio synthesizer

Optional

Battery

Min. 2600mAh rechargeable battery

Power supply

For charging only – DC 5V 1A
Desktop – DC 9V 2.4A

  Certifications

PCI PTS
Visa PayWave
JCB J/Speedy
TQM
FCC/CE/CCC

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

171 (L) x 88 (W) x 62 (H) mm
480g (with battery)
400g (without battery)

*Specifications is subject to change without prior notice.

Charger 1800 Peripheral

• Save time, low cost, more efficient
• Clear status indicator LED
• Can charge max. 3 batteries at one time

You may interest…

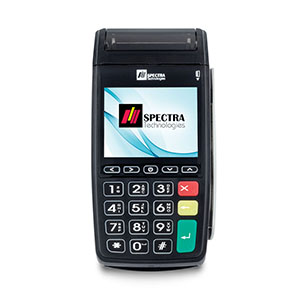

T300 Mobile

Tablet Stand POS

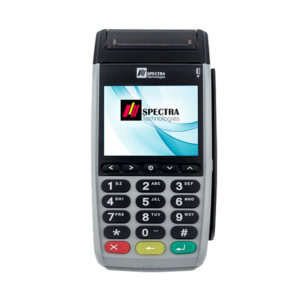

T810 Mobile
