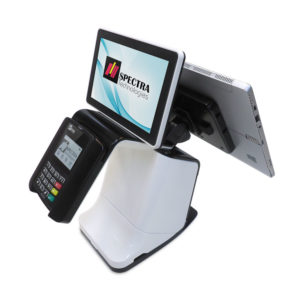

Tablet Stand POS

TS1

Integrated one-stop solution for your business expansion

Designed as a central hub of POS to connect displays, tablets, network and various payment terminals. The TS1 is a multi-functional counter top transformer which has created a convenient platform for various merchants to custom-make their own POS station at shops.

Core Features

• Support Android/Windows® platform
• Support Magstripe, EMV and contactless payment
• Bluetooth® connection to mPOS
• Either Ethernet, WIFI or 3G/4G communication to outside world
• Built-in super fast and reliable 3″ thermal printer with auto-cutter
• 4 x USB host port (connected to USB devices like cash drawer, barcode reader…etc)
• Support SPECTRA SP530 mPOS and T300 mPOS

Optional

• Wide selection of different tablets
• Dual screen display
• Android or Windows® tablet with 8”~15” display

Feature of TS1

Specifications

Processor

ARM® Cortex® secure processor

Platform

Android/Windows®

Display

8-15″ Android or Windows®

Second Display

7″ LCD (optional)

Reader

Magnetic Track 1/2/3
EMV
NFC Contactless (optional)

Memory

For SP530 mPOS: 8/16MB Flash, 256KB RAM
For T300 mPOS: 128MB Flash, 64MB RAM

Keys

1 (On/off switch)

Thermal Printer

Printer type: 3″ thermal with auto-cutter
Printing speed: Max. 250mm/sec
Paper roll: 80mm diameter

Card Slots

For SP530 mPOS:
SAM x max. 1 (optional), Micro SD x 1 (optional)
For T300 mPOS:
SAM x max. 2 (optional),
SIM x 2 (optional)

Audio

Speaker x 1

Communication Interface

Ethernet

Peripheral

RS232 x 1
USB 2.0 x 1
USB host port x 4

Battery

2500mAh x 4 (optional)

Power supply

DC jack for 24V power input, 100~240 AC, 50/60Hz

  Certifications

PCI PTS
Visa PayWave
MasterCard Contactless
TQM
FCC/CE

EMV L1 & L2
SRED
QPBOC
American Express ExpressPay (T300 only)
JCB J/Speedy (T300 only)

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

5 – 95% non-condense

Dimensions

350 (L) x 186 (W) x 290 (H) mm

Overall weight (Excluded paper roll)

For SP530 mPOS:
3.3kg, without 7″ customer LCD & no battery
3.7kg, with 7″ customer LCD & battery

For T300 mPOS:
3.4kg (no battery), 3.6kg(with battery)

*Specifications are subject to change without prior notice.
