T1000 Countertop

T1000 Countertop

Unprecedented Security & Support Multimedia Promotion

OVERVIEW

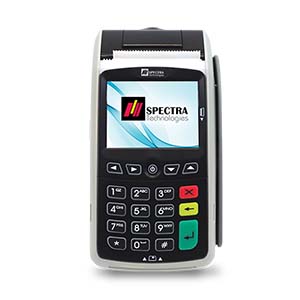

T1000 Countertop combining the powerful 32-bit ARM9 CPU assures fast and reliable payment from credit and PIN-based debit to EMV smart cards transactions, meeting the future industry standard with PCI PTS V4.X certification. It is designed with light weight for handheld. Its palm comfort case, big size key buttons and color display can deliver you an awesome experience of payment transaction operation. Apart from being a portable handheld device, a small bottom mounted stand will convert the petite T1000 to a cute counter top terminal.

Core Features

• Fast transaction processing
• Support remote software updates
• High resolution color display
• Broadband with dial backup
• Compact in size, light weight
• Fast, quiet, easy-load thermal printer
• Large battery capacity
• Keypad with backlight
• Large memory design to cater for multi-application
• Modular design suit for different types of application
• Brand promotion, messaging, alerts

Light Weight & Comfort Portable Design

T1000’s palm comfort case, big size key buttons and color display can deliver you an awesome experience of payment transaction operation. Apart from being a portable handheld device, a small bottom mounted stand will convert the petite T1000 to a cute counter top terminal.

One-stop Solutions All in T1000 Countertop

Highly Secure and Reliable

Meeting the future industry standard with PCI PTS V4.X certification, and highly secure and reliable with international certifications (EMV Level 1 & 2, Visa PayWave, MasterCard PayPass, TQM, PBOC and FCC/CE/CCC).

Optional

• Built-in contactless reader
• 1D or 2D barcode reader
• 2.8” LCD color large display
• Touch screen display
• Camera
• GSM/GPRS, 3G/WCDMA and WIFI wireless module
• Audio synthesizer with build-in speaker
• Large paper roll housing

Specifications

Processor

ARM® Cortex®

Display

2.8″ LCD color display, 320 x 240
Touch screen & signature pad (optional)

Reader

Magnetic Track 1/2/3
EMV
Contactless (optional)
QR code payment (optional)

Memory

64/128MB RAM
128/512MB Flash

Keys

20

Camera

Optional

Card Slots

SAM x max. 4
Micro SD x 1 (optional)
SIM x 2 (optional)

Thermal Printer

Printing speed: 30lines/sec
Paper roll: 40/50mm diameter

Communication Interface

Dial-up modem, Ethernet
GPRS/3G/WIFI, GPS

Peripheral

RS232 x 2
USB OTG x 1

Audio synthesizer

Audio synthersizer with built-in speaker (optional)

Battery

Min. 2600mAh rechargeable battery

Power supply

For charging – DC 5V 1A
Desktop – DC 9V 2.4A

  Certifications

PCI PTS 5.X
Visa PayWave
JCB J/Speedy
TQM
FCC/CE/CCC

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

171 (L) x 88 (W) x 62 (H) mm
480g (with battery), 400(without battery)

*Specifications is subject to change without prior notice.

Charger 1800 Peripheral

• Save time, low cost, more efficient
• Clear status indicator LED
• Can charge max. 3 batteries at one time
