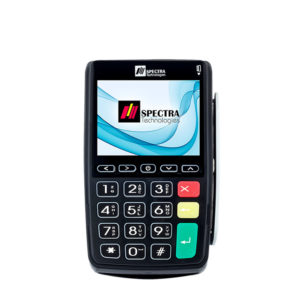

T300 mPOS

T300 mPOS

Portable Terminal with All Payment Options & High Performance

OVERVIEW
T300 mPOS provides all payment options for MSR, EMV and NFC contactless payment. Featuring with 2.8″ color display (optional touch screen or signature pad) allows broaden applications. Also, it offers flexible wireless connectivity choice of 3G, GPRS, WiFi and Bluetooth® are definitely user-friendly and convenient to the mobile merchants.

Core Features

• ARM® Cortex® 500MHz secure processor
• 2.8” LCD color large display
• Support EMV Chip & PIN (PCI PTS V4.x certified)
• Support MagStripe and Contactless payment
• GPRS or 3G WCDMA/GPRS communication, WIFI/Bluetooth® V4.x
• USB OTG interface
• Large capacity battery
• Wide keypad

Optional

• Resistive touch screen
• Build-in contactless reader
• Dual SIM support

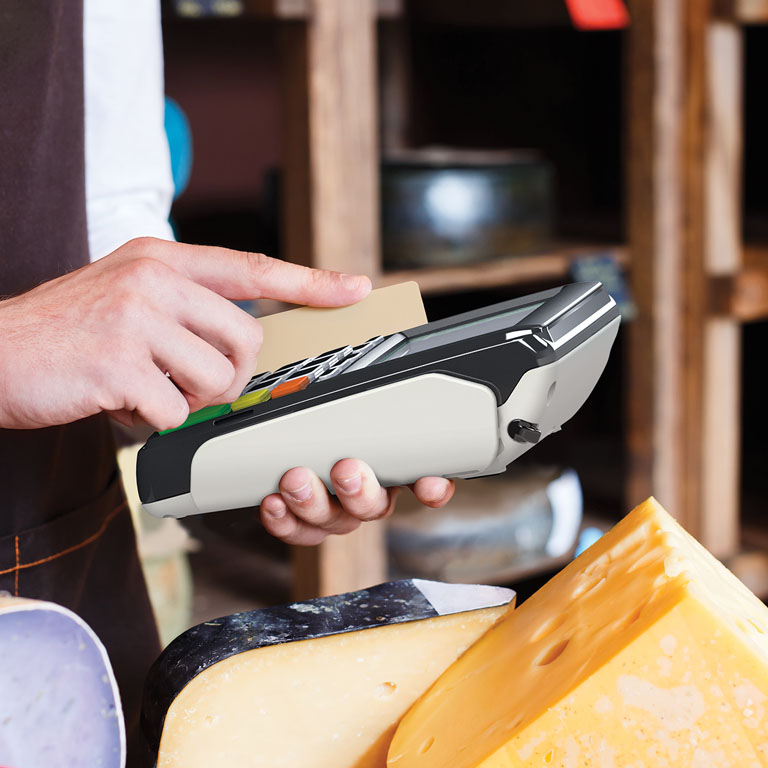

Feature of T300 mPOS

Specifications

Processor

ARM® Cortex® 500MHz secure processor

Display

2.8″ LCD color display, 320 x 240
Touch screen & signature pad (optional)

Reader

Magnetic Track 1/2/3
EMV
Contactless (optional)

Memory

64MB RAM
128/512MB Flash

Keys

20

Camera

5MP main camera

Card Slots

SAM x max. 2 (optional)
SIM x 2 (optional)

Audio synthesizer

(Optional)

Communication Interface

GPRS, GPS(AGPS), 3G, WIFI, Bluetooth®

Peripheral

RS232 x 1
USB OTG x 1

Battery

Min. 2600mAh rechargeable battery

Power supply

DC 5V 1A (USB)

  Certifications

PCI PTS
Visa PayWave
American Express ExpressPay
CUP QuickPass
JCB J/Speedy
TQM

EMV L1 & L2
MasterCard Contactless
SRED
QPBOC
FCC/CE/CCC

Operating temperature

0 – 45ºC

Storage temperature

-20 – 70ºC

Operating humidity

0 – 85% non-condense

Dimensions & weight

130 (L) x 80 (W) x 40 (H) mm
270g (with battery)

*Specifications is subject to change without prior notice.

BP80 Bluetooth® Printer Peripheral

Ultra light and portable printer – BP80. It can pairing with our mPOS terminal by Bluetooth®.
